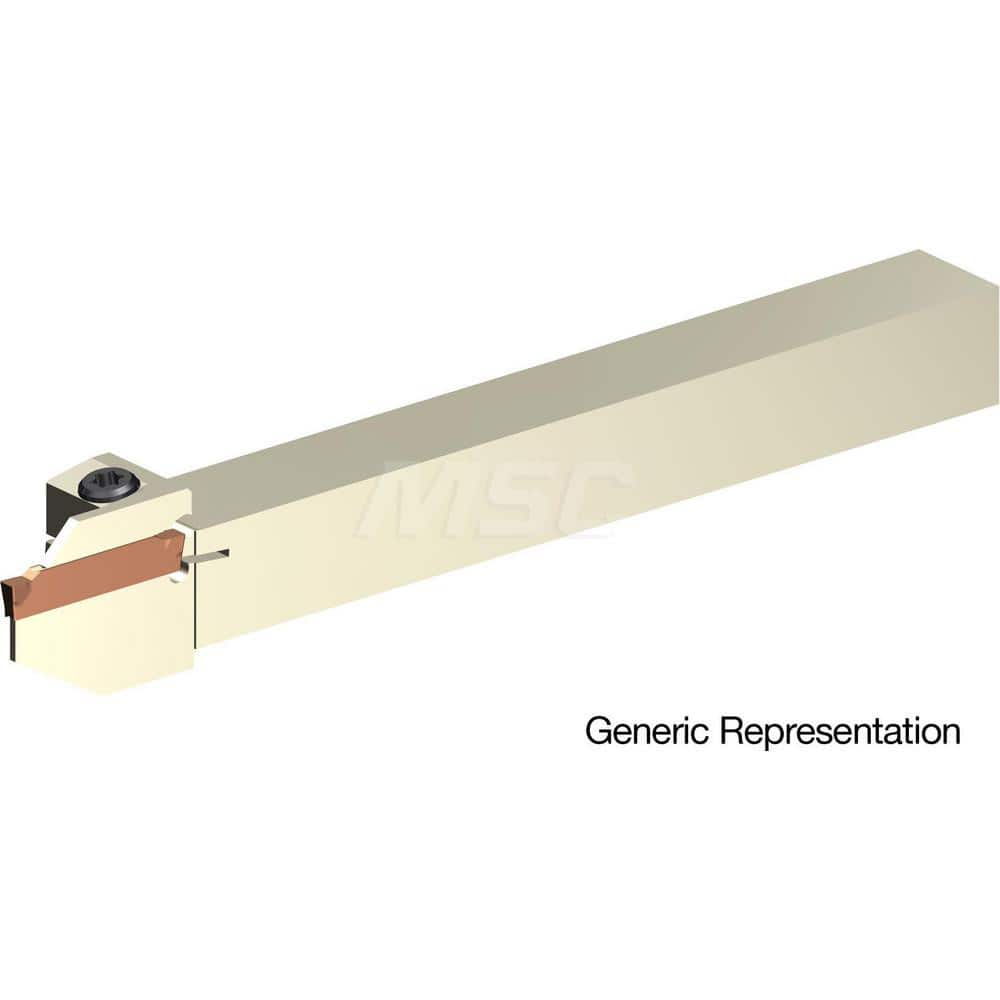

Indexable Cutoff Toolholder: 1/2″ Max Depth of Cut, 1″ Max Workpiece Dia, Right Hand 1/2″ Shank Height, 1/2″ Shank Width, Uses GCMN Inserts, Series GND
Item #: 13710900
Brand: Sumitomo
Model #: 2600W5R
Product Specifications
| Hand of Holder | Right |
| Maximum Depth of Cut (Inch) | 1/2 |
| Maximum Workpiece Diameter (Decimal Inch) | 1.0000 |
| Maximum Workpiece Diameter (Inch) | 1 |
| Toolholder Style | GND |
| Compatible Insert Size Code | GCMN |
| Overall Length (Inch) | 4-3/4 |
| Insert Holding Method | Clamp |
| Shank Width/Diameter (Inch) | 1/2 |
| Shank Height (Inch) | 1/2 |
| Series | GND |
| Head Length (Decimal Inch) | 0.8780 |
| Maximum Insert Width (Decimal Inch) | 0.1252 |
