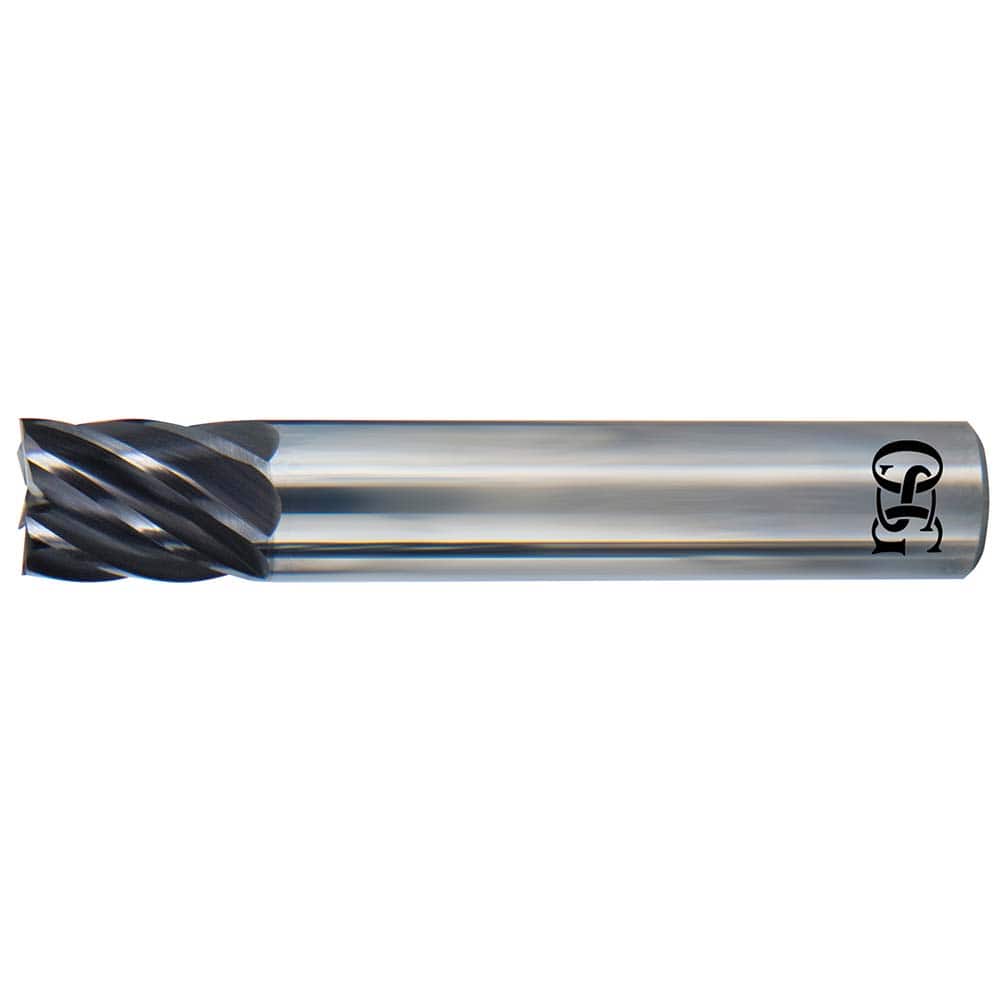

Corner Radius End Mill: 5/8″ Dia, 25/32″ LOC, 0.06″ Radius, 7 Flutes, Solid Carbide 3″ OAL, 5/8″ Shank Dia, 36 ° Helix, EXO Coated, Corner Radius End, Series VGM7
Item #: 13849815
Brand: OSG
Model #: VGM7-0074
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Mill Diameter (Inch) | 5/8 |
| Length of Cut (Inch) | 25/32 |
| Corner Radius (Decimal Inch) | 0.0600 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Extended Reach | No |
| End Type | Corner Radius |
| Length Type | Stub |
| Flute Type | Helical |
| Helix Angle | 36 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 5/8 |
| Overall Length (Inch) | 3 |
| Overall Length (Decimal Inch) | 3.0000 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Series | VGM7 |
| Proprietary Coating Designation | EXO |
| Single Or Double End | Single |
| Coating/Finish | EXO |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7813 |
