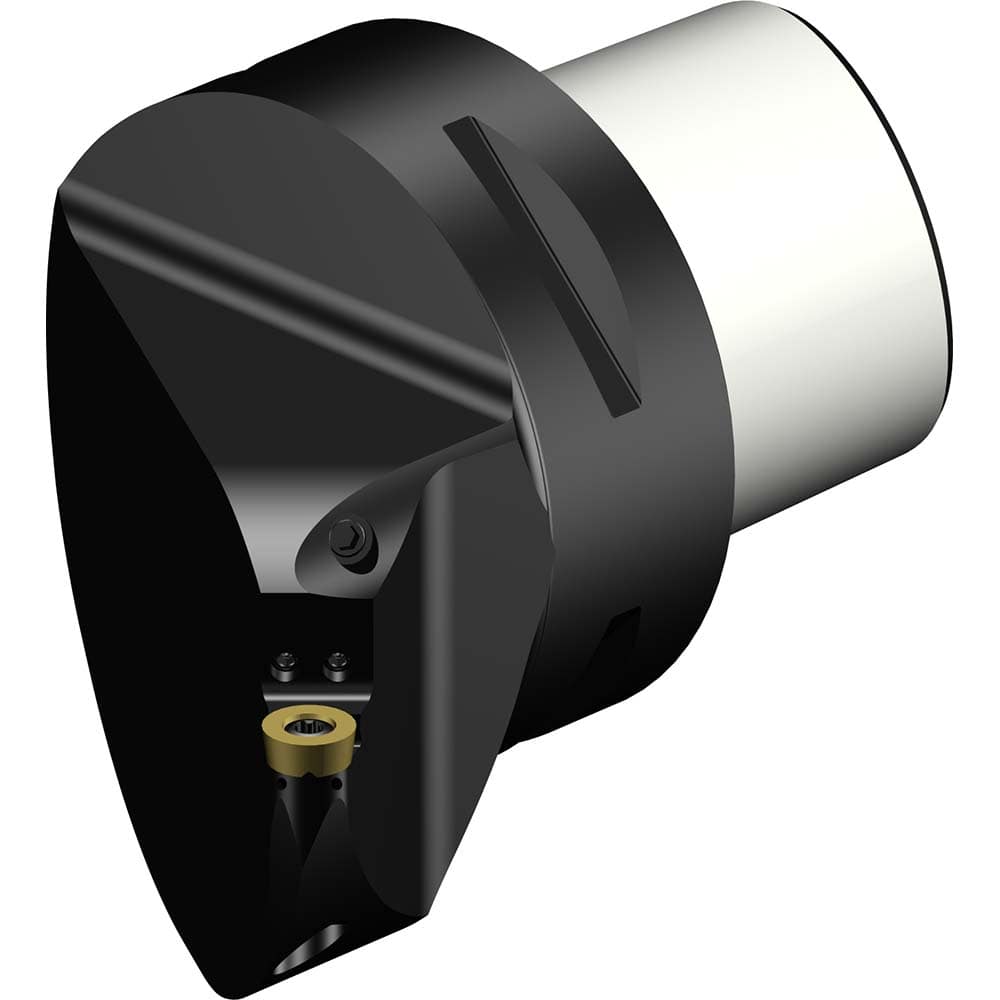

Sandvik Coromant - Modular Turning & Profiling Cutting Unit Heads; System Size: C6 ; Series Name: CoroTurn 107 ; Cutting Direction: Right Hand ; Head Length/Projection (mm): 65.00 ; Insert Style: RCMT ; Internal or External: Internal
Item #: 13907365
Brand: Sandvik Coromant
Model #: 7960719
Product Specifications
Modular Turning & Profiling Cutting Unit Heads; System Size: C6 ; Series Name: CoroTurn 107 ; Cutting Direction: Right Hand ; Head Length/Projection (mm): 65.00 ; Insert Style: RCMT ; Internal or External: Internal
| System Size | C6 |
| Series Name | CoroTurn 107 |
| Cutting Direction | Right Hand |
| Head Length/Projection (mm) | 65.00 |
| Insert Style | RCMT |
| Internal or External | Internal |
| Center to Cutting Edge (mm) | 65.00 |
| Insert Holding Method | Screw & Clamp |
| Through Coolant | Yes |
| Minimum Hole Diameter (mm) | 150.00 |
| Axial Rake Angle | 0 |
| Center to Cutting Height (mm) | 65.00 |
| Complete Insert Compatibility | RCMT 08 03 MP |
