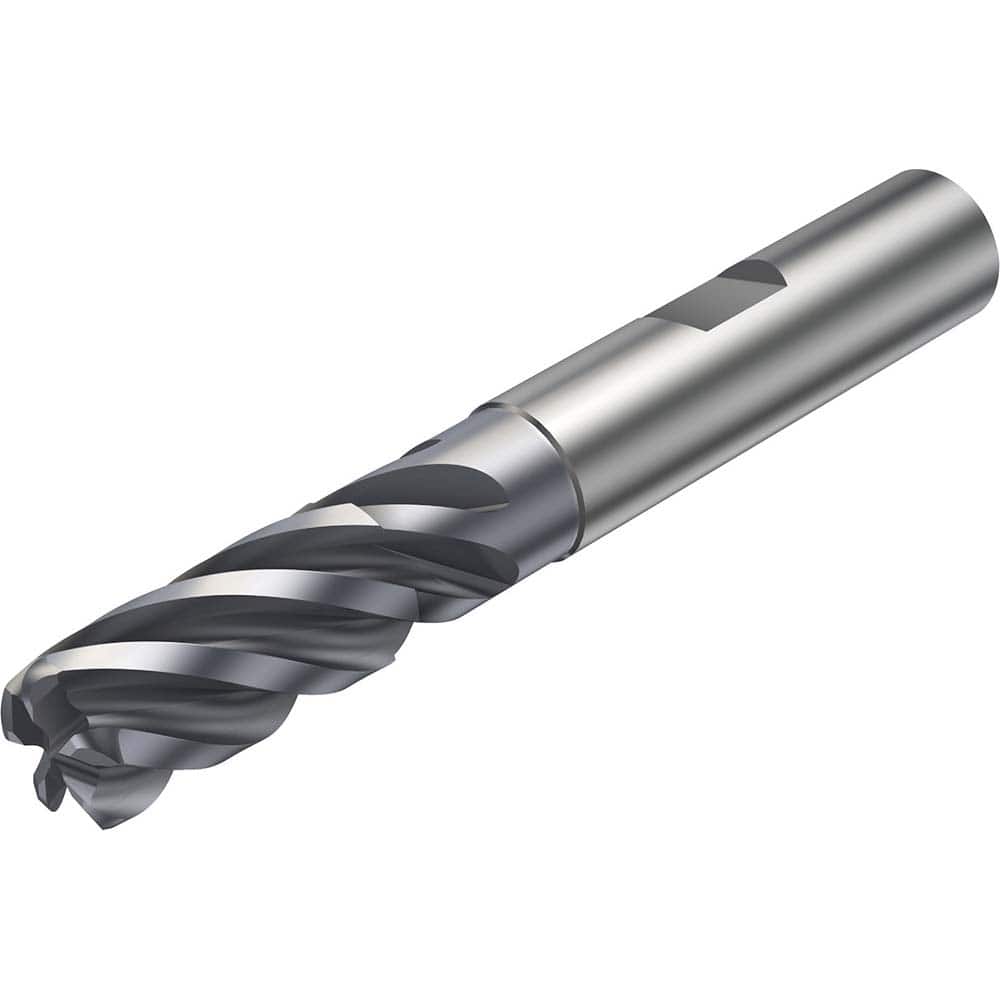

Corner Radius End Mill: 0.394″ Dia, 0.079″ Radius, 5 Flutes, Solid Carbide 38 ° Helix, AlCrN Coated, Corner Radius End, Series CoroMill Plura
Item #: 13913033
Brand: Sandvik Coromant
Model #: 7716310
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3940 |
| Mill Diameter (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Length of Cut (mm) | 22.00 |
| Number Of Flutes | 5 |
| End Mill Material | Solid Carbide |
| End Type | Corner Radius |
| Flute Type | Helical |
| Helix Angle | 38 |
| Shank Type | Weldon Flat |
| Centercutting | No |
| Variable Index | No |
| Variable Helix | No |
| Shank Diameter (mm) | 10.0000 |
| Overall Length (mm) | 72.00 |
| Cutting Direction | Right Hand |
| Series | CoroMill Plura |
| Single Or Double End | Single |
| Coating/Finish | AlCrN |
