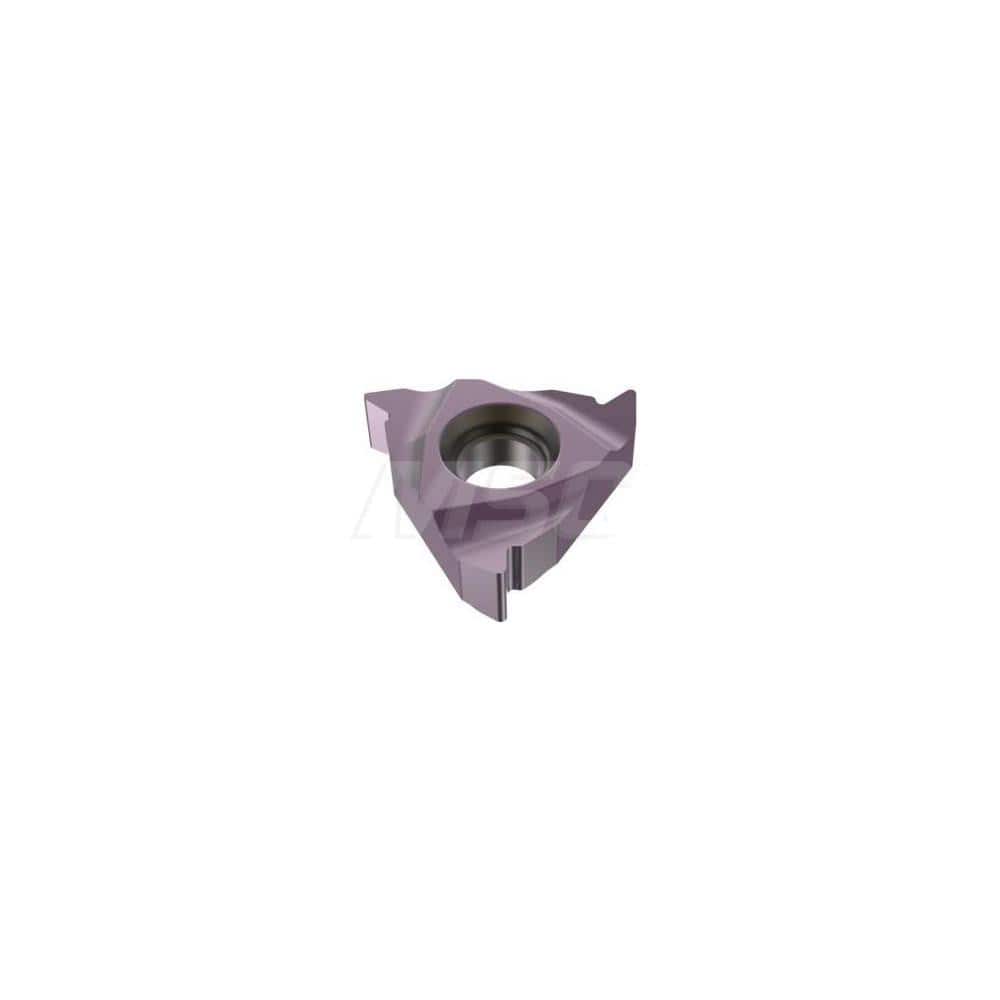

Threading Insert:16 Size, 16NR Style, TTP2050 Grade, Solid Carbide Coated Finish, Series 16NR
Item #: 14086979
Brand: Seco
Model #: 10050326
Product Specifications
| Insert Style | 16NR |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TTP2050 |
| Thread Type | Internal |
| Thread Standard | Whitworth, BSW |
| Insert Hand | Right Hand |
| Internal Pitch | 11.00 mm |
| Included Angle | 55 |
| Chipbreaker | Universal |
| Series | 16NR |
| Coating Process | PVD |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Corner Radius (Decimal Inch) | 0.0118 |
| Ansi Code | 16NR11W |
| Iso Code | 16NR11W |
| Insert Size | 16 |
| Finish Coating | Coated |
