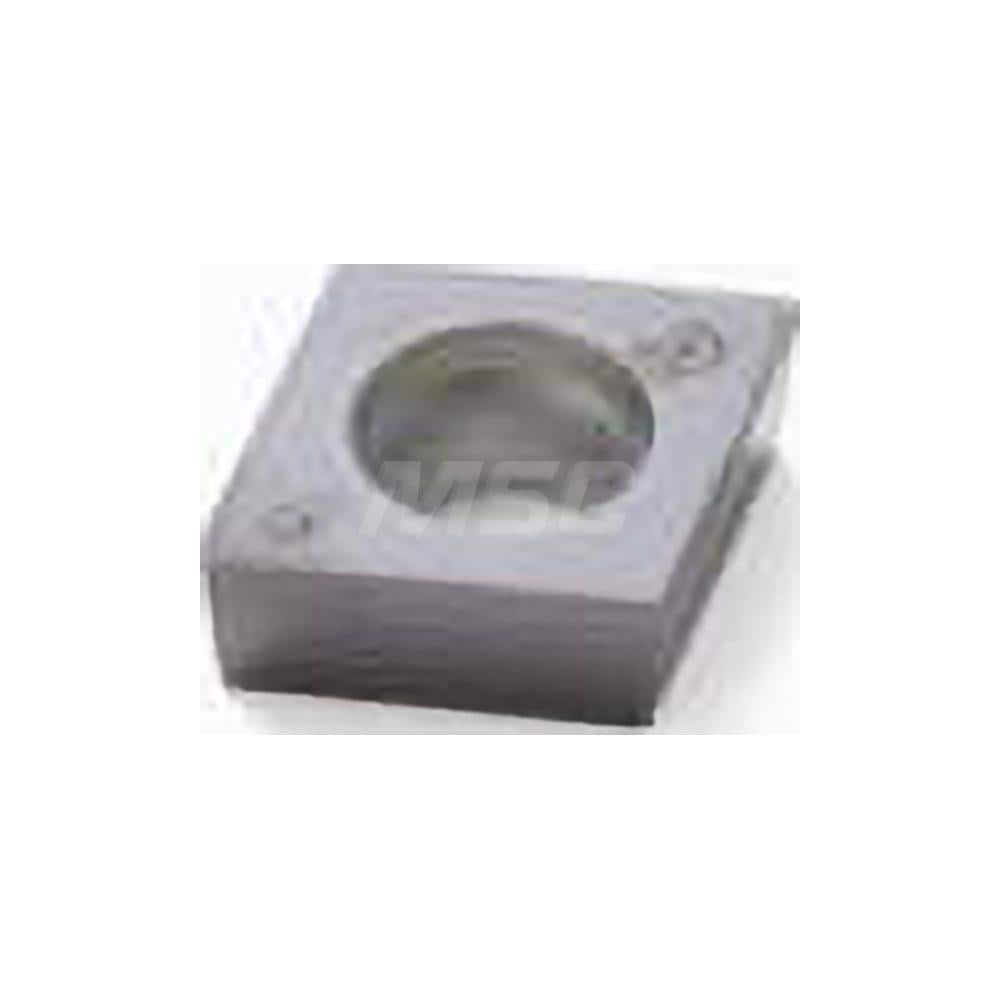

Turning Insert: CCGW21.52S-00415-L1-B, Polycrystalline Cubic Boron Nitride TiAlSiN Finish, Neutral, 1/4″ Inscribed Circle, 0.0315″ Corner Radius, 80.0 ° N/A Diamond, Series CCGW21.52
Item #: 14087324
Brand: Seco
Model #: 10102678
Product Specifications
| Insert Style | CCGW |
| Insert Shape Code | C |
| Insert Size Code | 21.52 |
| Insert Shape | Diamond |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CBN060K |
| Hole Diameter (Decimal Inch) | 0.1142 |
| Maximum Depth of Cut (Decimal Inch) | 0.1142 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | CCGW21.52 |
| Coating Process | PVD |
| Rake | Positive |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | CCGW21.52S00415L1B |
| Iso Code | CCGW060208S-01015-L1-B |
| Chip Breaker | W |
| Coating/Finish | TiAlSiN |
