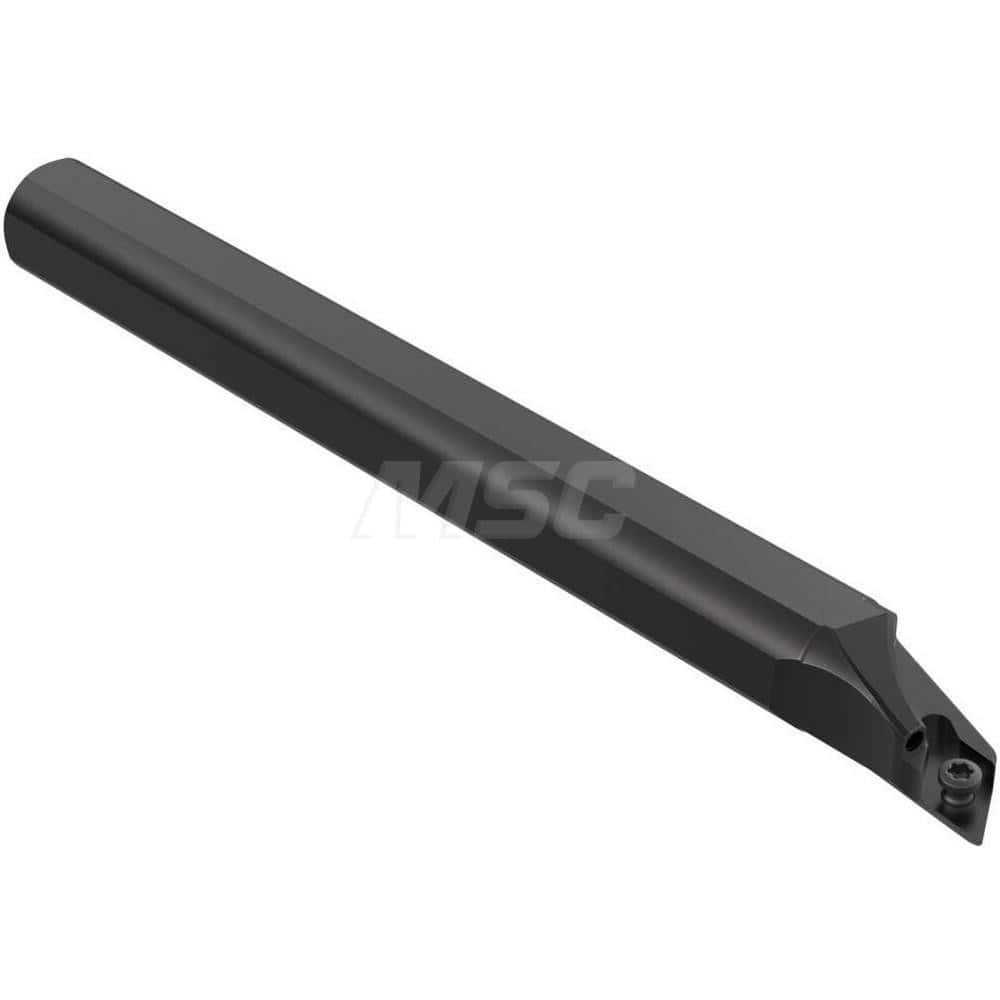

Indexable Boring Bar: A20R-SDXCL11, 24.00 mm Min Bore, 19.98 mm Shank Dia, 120.00° N/A Steel 200.0000″ OAL, Screw,
Item #: 14087423
Brand: Seco
Model #: 10102583
Product Specifications
| Minimum Bore Diameter (mm) | 24.00 |
| Maximum Bore Depth (mm) | 32.10 |
| Toolholder Style | A20R |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 19.9800 |
| Shank Diameter (mm) | 19.98 |
| Overall Length (Decimal Inch) | 200.0000 |
| Overall Length (mm) | 200.00 |
| Overall Length (Inch) | 200 |
| Compatible Insert Size Code | DC..32.5.; DC..11T3.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Diamond |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Left Hand |
| Rake Angle | -2.60 |
| Lead Angle | 120.00 |
| Series | A20R |
| Insert Inscribed Circle (mm) | 9.53 |
| Compatible Insert Thickness (mm) | 3.97 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Copying; Boring |
| Back of Bar to Cutting Edge (mm) | 21.87 |
| Center to Cutting Edge (mm) | 11.88 |
| Coolant Through | Yes |
