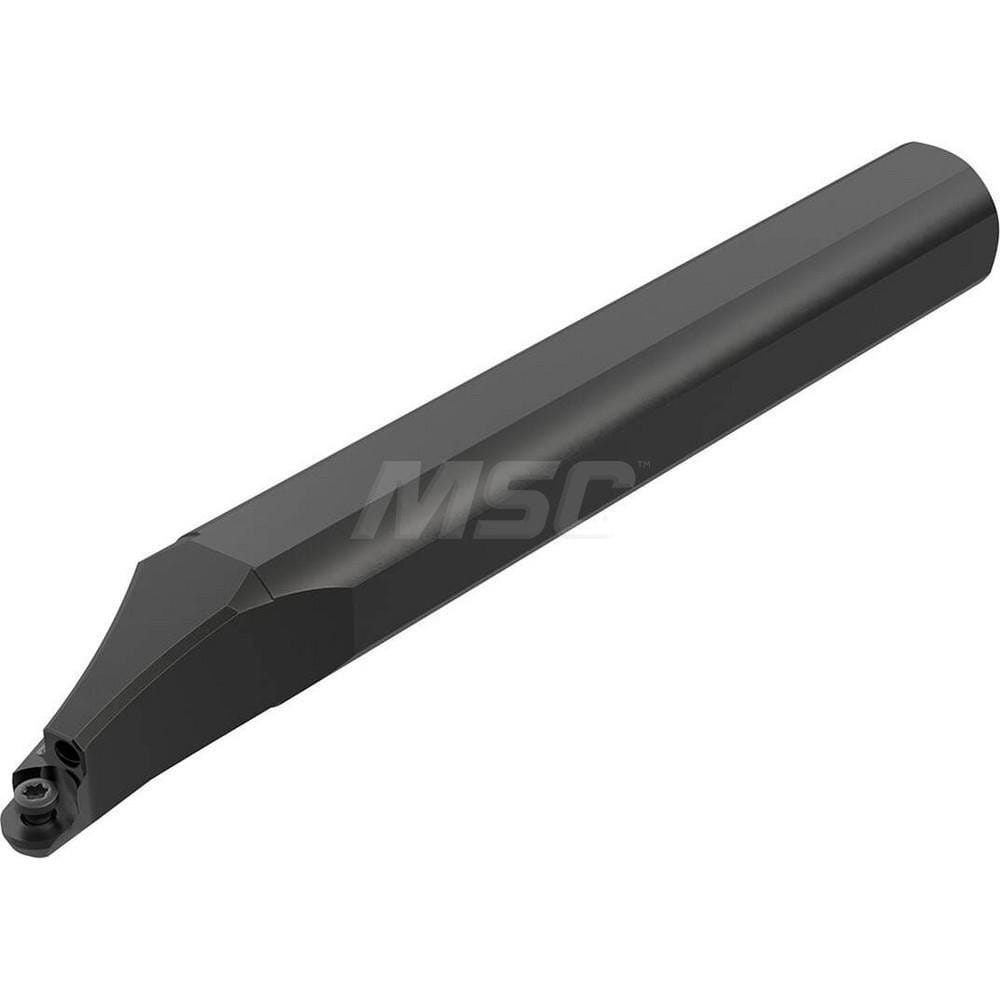

Indexable Boring Bar: A20M-SRXCR08, 32.00 mm Min Bore, 19.98 mm Shank Dia, 90.00° N/A Steel 150.0000″ OAL, Screw,
Item #: 14087431
Brand: Seco
Model #: 10102584
Product Specifications
| Minimum Bore Diameter (mm) | 32.00 |
| Maximum Bore Depth (mm) | 33.04 |
| Toolholder Style | A20M |
| Tool Material | Steel |
| Shank Diameter (Decimal Inch) | 19.9800 |
| Shank Diameter (mm) | 19.98 |
| Overall Length (Decimal Inch) | 150.0000 |
| Overall Length (mm) | 150.00 |
| Overall Length (Inch) | 150 |
| Compatible Insert Size Code | RC..0803.. |
| Insert Holding Method | Screw |
| Compatible Insert Shape | Round |
| Insert Included | No |
| Rake | Positive |
| Cutting Direction | Right Hand |
| Rake Angle | 0.00 |
| Lead Angle | 90.00 |
| Series | A20M |
| Insert Inscribed Circle (mm) | 8.00 |
| Compatible Insert Thickness (mm) | 3.18 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Copying; Boring |
| Back of Bar to Cutting Edge (mm) | 20.87 |
| Center to Cutting Edge (mm) | 10.88 |
| Coolant Through | Yes |
