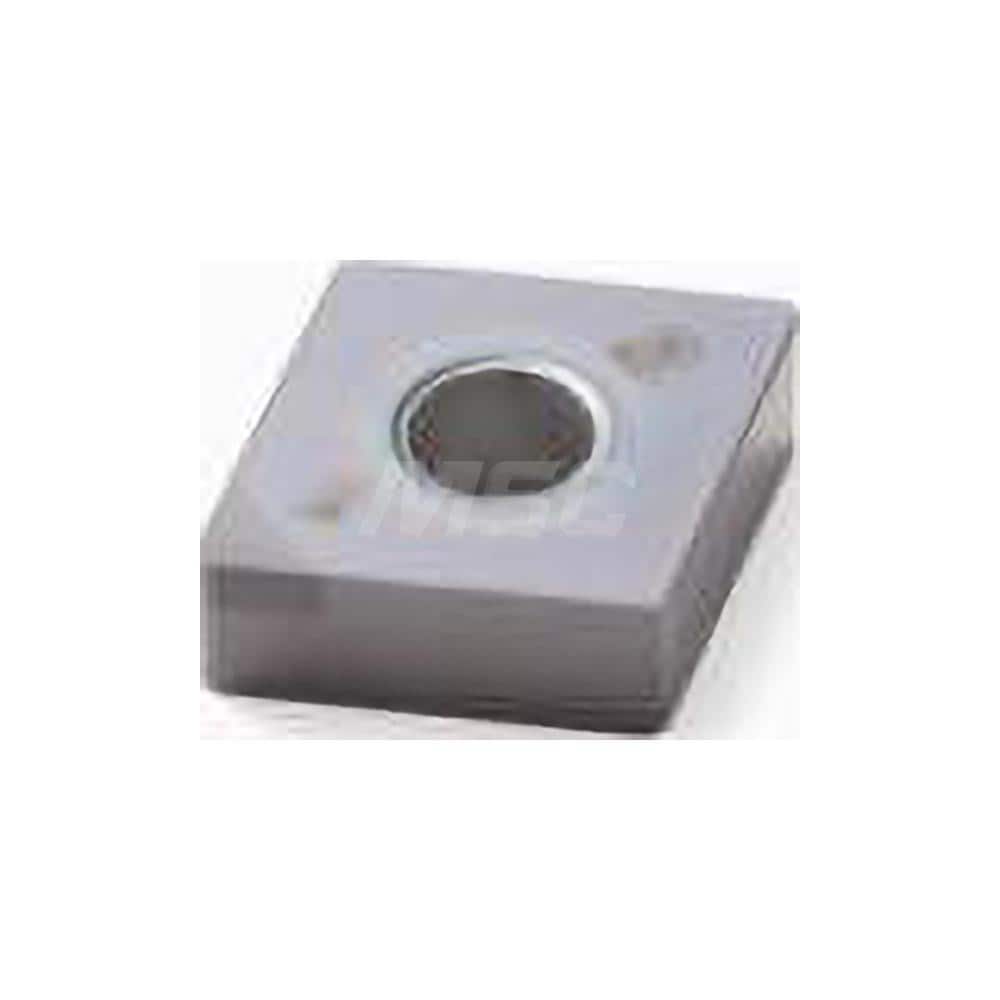

Turning Insert: CNGA431S-00415-L1-B, Polycrystalline Cubic Boron Nitride TiAlSiN Finish, Neutral, 1/2″ Inscribed Circle, 0.0157″ Corner Radius, 80.0 ° N/A Diamond, Series CNGA431
Item #: 14087589
Brand: Seco
Model #: 10102681
Product Specifications
| Insert Style | CNGA |
| Insert Shape Code | C |
| Insert Size Code | 431 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Polycrystalline Cubic Boron Nitride |
| Manufacturer Grade | CBN060K |
| Hole Diameter (Decimal Inch) | 0.2028 |
| Maximum Depth of Cut (Decimal Inch) | 0.1457 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | CNGA431 |
| Coating Process | PVD |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 4 |
| Primary Workpiece Material | Hard Material |
| Primary Workpiece Material Code | H |
| Ansi Code | CNGA431S00415L1B |
| Iso Code | CNGA120404S-01015-L1-B |
| Chip Breaker | A |
| Coating/Finish | TiAlSiN |
