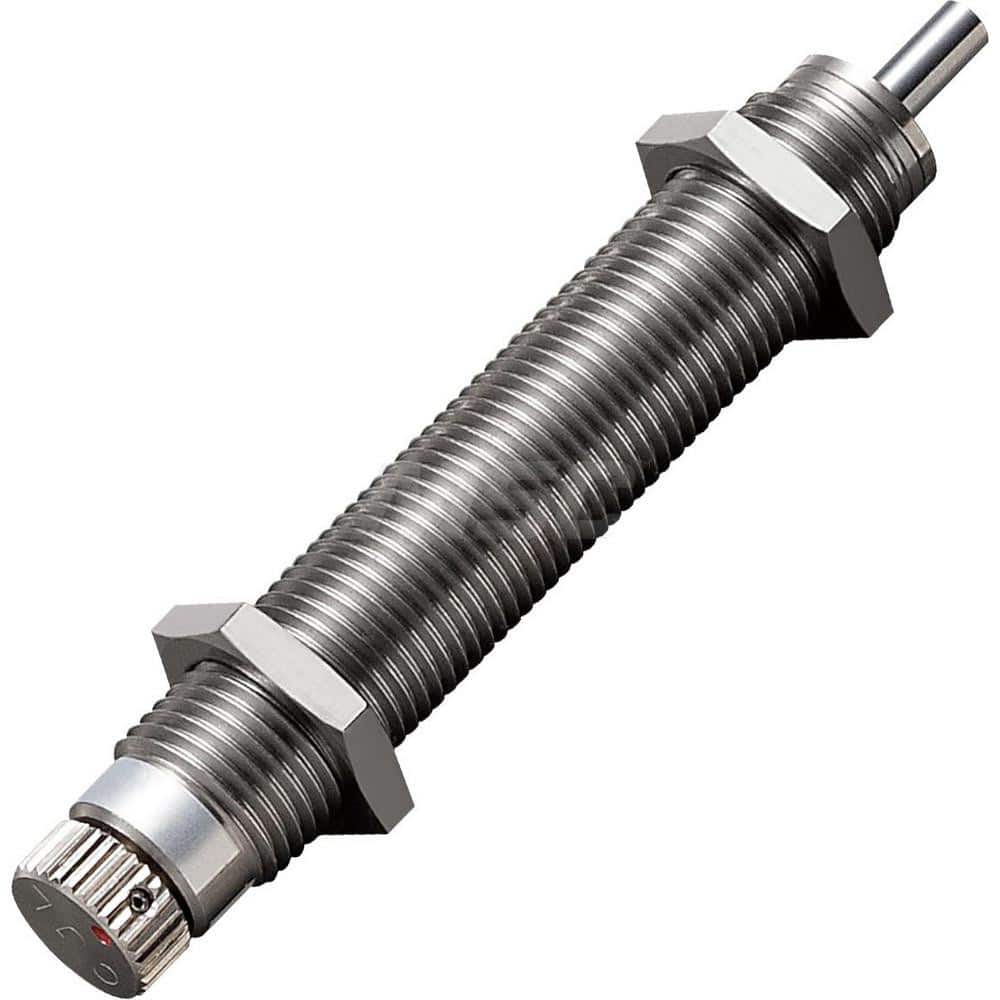

Standard-Duty Shock Absorber: 2.5 mm Rod Dia, 12.7 mm OD, 6 mm Stroke, M8 x 0.75 Thread 53 mm OAL, 9 lb Force
Item #: 14123525
Brand: Bansbach, EasyLift
Model #: FA-0806-S
Product Specifications
| Type | Standard Duty Shock Absorber |
| Absorber Type | Standard Duty Shock Absorber |
| Rod Diameter (Decimal Inch) | 2.5 mm |
| Rod Diameter | 2.5 mm |
| Shock Outside Diameter | 12.70 |
| Stroke Length (Decimal Inch) | 6.00 |
| Stroke Length | 6.00 |
| Thread Size | M8x0.75 |
| Overall Length | 53.00 |
| Force | 9.00 |
| Maximum Cycles Per Minute | 45 |
| Rod Material | Steel |
| Body Material | Steel |
| Minimum Operating Temperature | -5 ?C |
| Maximum Operating Temperature | 70 ?C |
| Adjustable Resistance | Yes |
| Overall Length (Decimal Inch) | 53.00 |
| Maximum Energy Absorption | 1.4 J |
