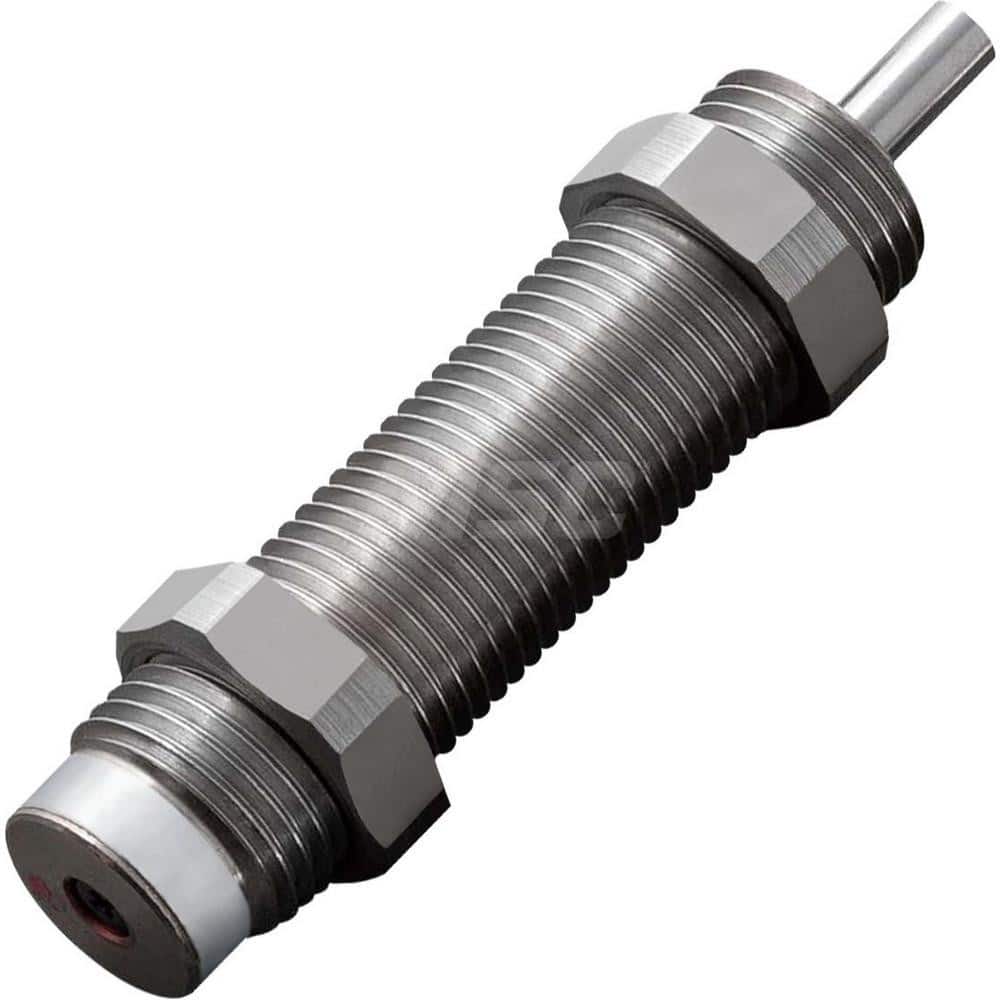

Standard-Duty Shock Absorber: 5 mm Rod Dia, 21.9 mm OD, 12 mm Stroke, M16 x 1.5 Thread 75 mm OAL, 9.8 lb Force
Item #: 14149769
Brand: Bansbach, EasyLift
Model #: FK-1612M-S
Product Specifications
| Type | Standard Duty Shock Absorber |
| Absorber Type | Standard Duty Shock Absorber |
| Rod Diameter (Decimal Inch) | 5 mm |
| Rod Diameter | 5 mm |
| Shock Outside Diameter | 21.90 |
| Stroke Length (Decimal Inch) | 12.00 |
| Stroke Length | 12.00 |
| Thread Size | M16x1.5 |
| Overall Length | 75.00 |
| Force | 9.80 |
| Maximum Cycles Per Minute | 60 |
| Body Material | Steel |
| Minimum Operating Temperature | -5 ?C |
| Maximum Operating Temperature | 70 ?C |
| Adjustable Resistance | No |
| Overall Length (Decimal Inch) | 75.00 |
| Maximum Energy Absorption | 14.7 J |
