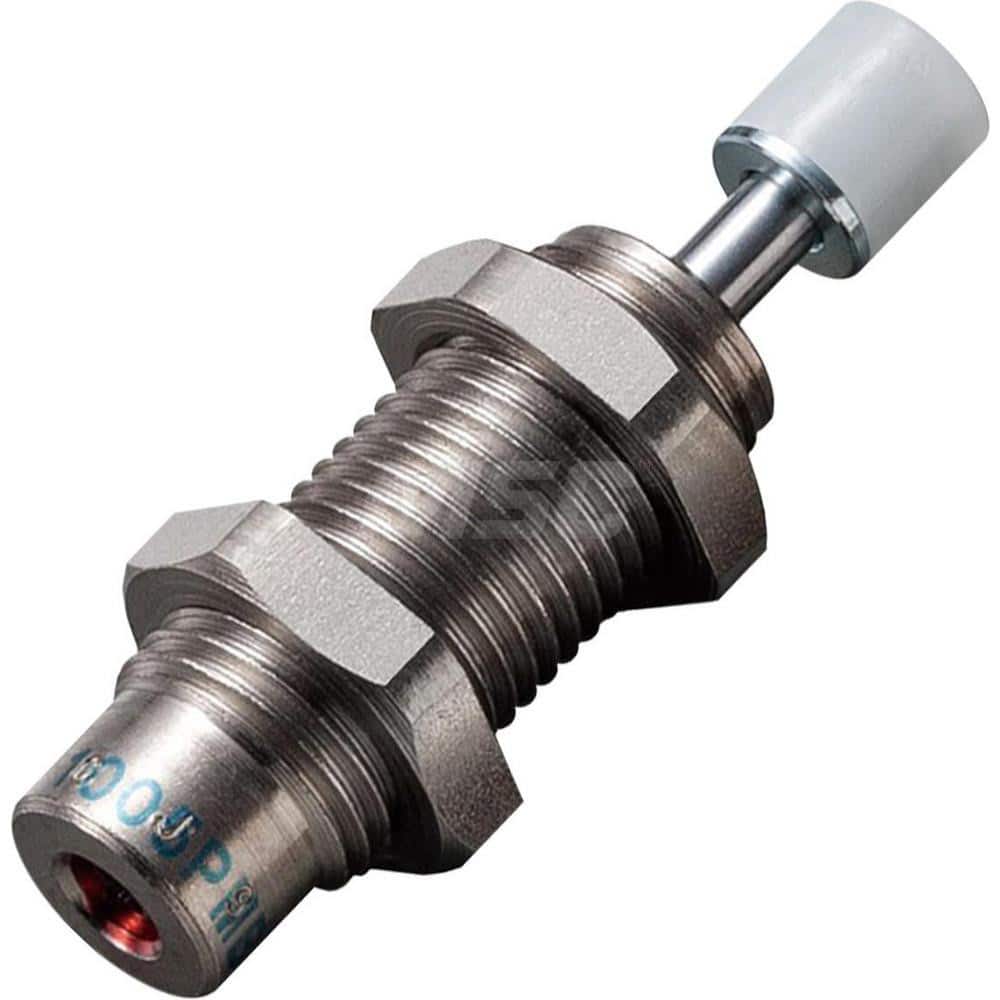

Standard-Duty Shock Absorber: 3 mm Rod Dia, 15 mm OD, 5 mm Stroke, M10 x 1 Thread 39 mm OAL, 5.88 lb Force
Item #: 14149827
Brand: Bansbach, EasyLift
Model #: FA-1005PMB1-C
Product Specifications
| Type | Standard Duty Shock Absorber |
| Absorber Type | Standard Duty Shock Absorber |
| Rod Diameter (Decimal Inch) | 3 mm |
| Rod Diameter | 3 mm |
| Shock Outside Diameter | 15.00 |
| Stroke Length (Decimal Inch) | 5.00 |
| Stroke Length | 5.00 |
| Thread Size | M10x1 |
| Overall Length | 39.00 |
| Force | 5.88 |
| Maximum Cycles Per Minute | 60 |
| Body Material | Steel |
| Minimum Operating Temperature | -5 ?C |
| Maximum Operating Temperature | 70 ?C |
| Adjustable Resistance | No |
| Overall Length (Decimal Inch) | 39.00 |
| Maximum Energy Absorption | 0.68 J |
