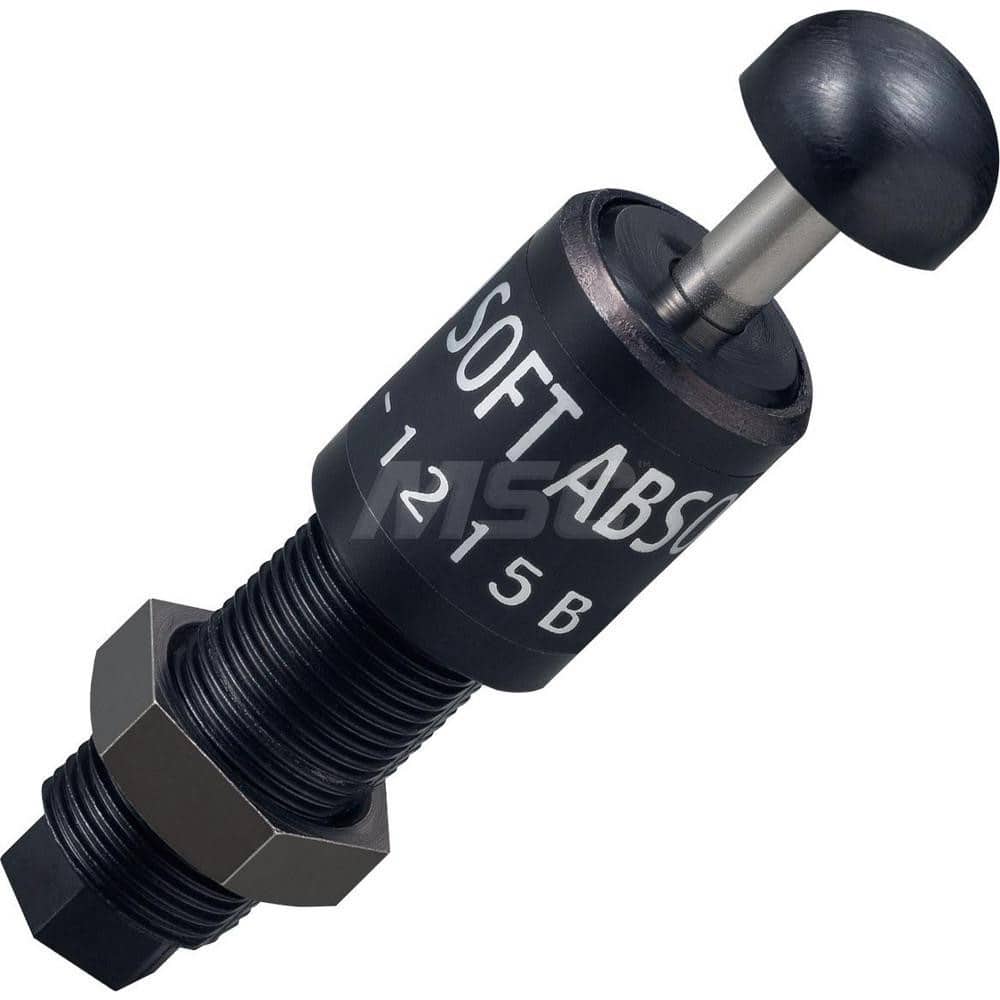

Standard-Duty Shock Absorber: 7 mm Rod Dia, 27.7 mm OD, 15 mm Stroke, M20 x 1.5 Thread 103 mm OAL, 11.8 lb Force
Item #: 14151278
Brand: Bansbach, EasyLift
Model #: FA-1215B1-C
Product Specifications
| Type | Standard Duty Shock Absorber |
| Absorber Type | Standard Duty Shock Absorber |
| Rod Diameter (Decimal Inch) | 7 mm |
| Rod Diameter | 7 mm |
| Shock Outside Diameter | 27.70 |
| Stroke Length (Decimal Inch) | 15.00 |
| Stroke Length | 15.00 |
| Thread Size | M20x1.5 |
| Overall Length | 103.00 |
| Force | 11.80 |
| Maximum Cycles Per Minute | 30 |
| Body Material | Steel |
| Minimum Operating Temperature | -10 ?C |
| Maximum Operating Temperature | 50 ?C |
| Adjustable Resistance | No |
| Overall Length (Decimal Inch) | 103.00 |
| Maximum Energy Absorption | 7.84 J |
