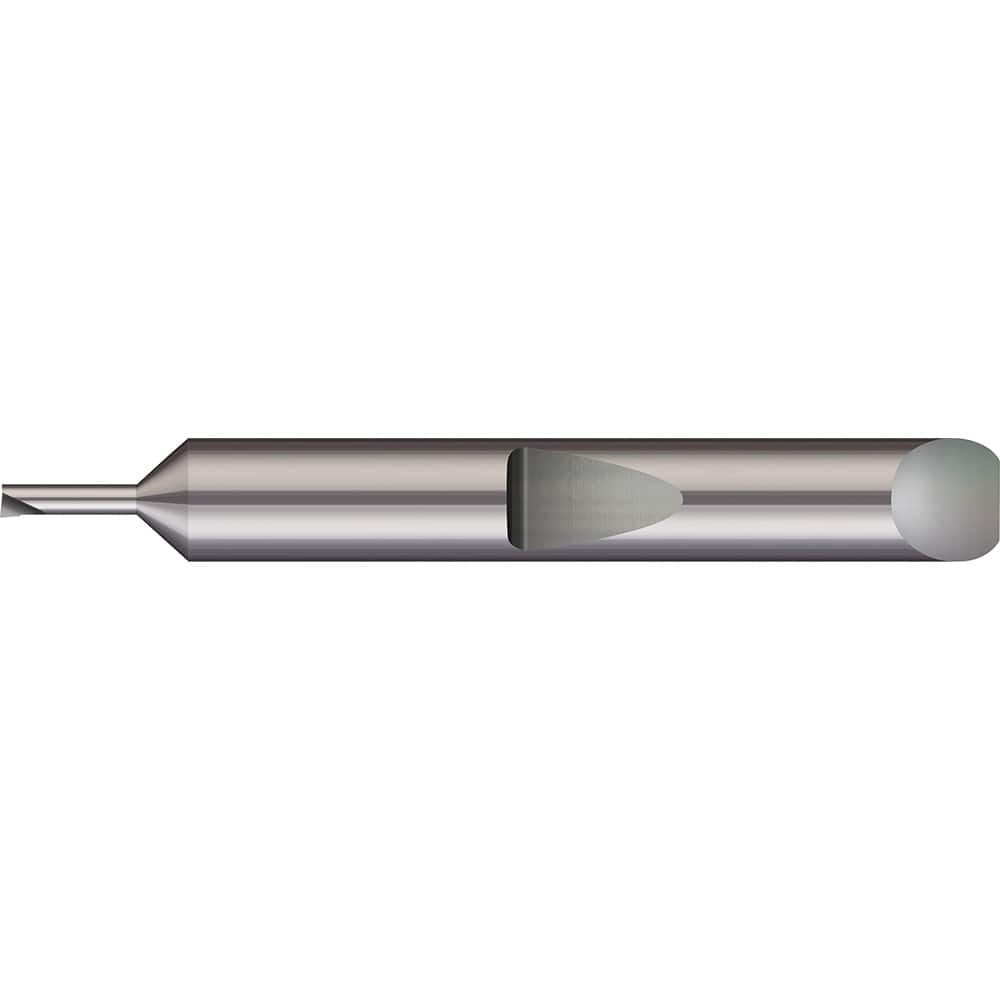

Micro Boring Bar: 0.0525″ Min Bore, 13/64″ Max Depth, Right Hand Cut, Solid Carbide 3/16″ Shank Dia, 1-1/2″ OAL
Item #: 14242440
Brand: Micro 100
Model #: QMBB-060200
Product Specifications
| Boring Bar Type | Micro Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.0525 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.2000 |
| Shank Diameter (Decimal Inch) | 3/16 |
| Overall Length (Inch) | 1-1/2 |
| Finish Coating | Uncoated |
| Maximum Bore Depth (Inch) | 13/64 |
| Offset (Decimal Inch) | 0.0300 |
| Overall Length (Decimal Inch) | 1.5000 |
