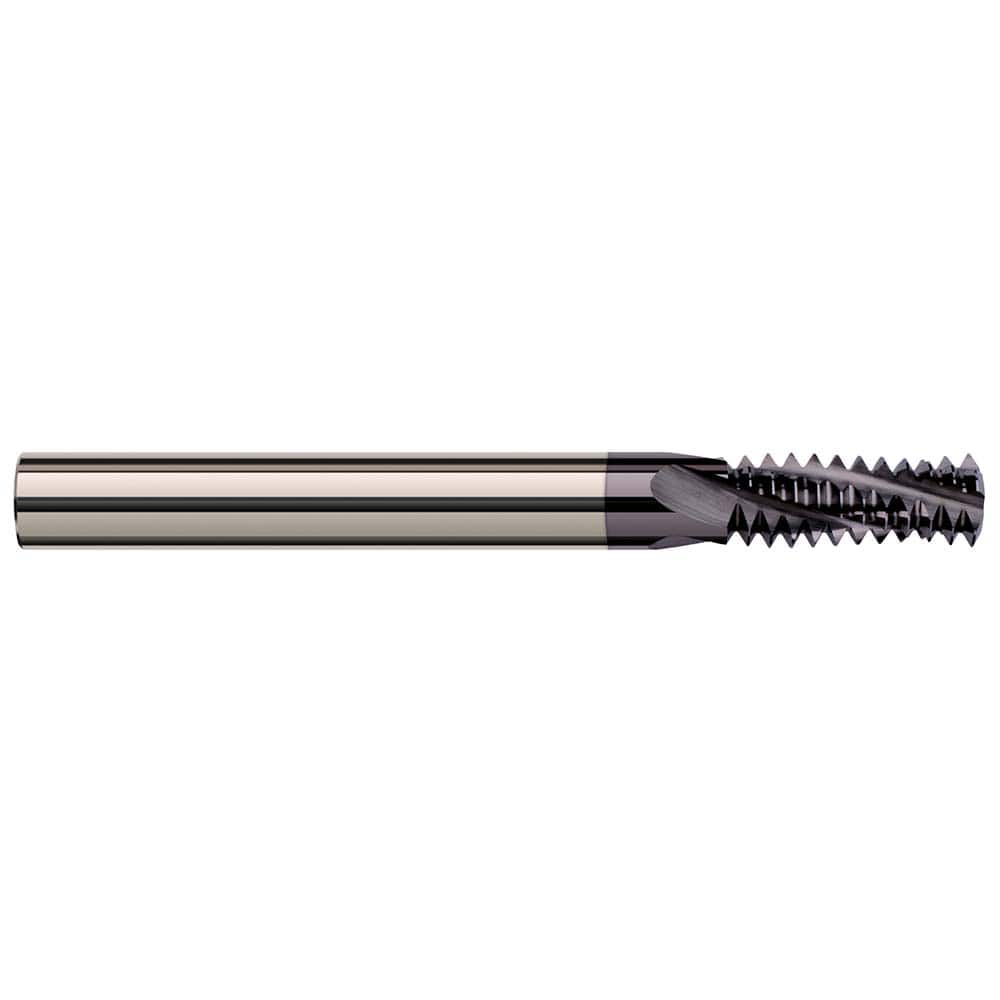

Harvey Tool - 7/8-9 Internal/External 9 TPI 5/8" Shank 4-Flute Solid Carbide Helical Flute Thread Mill
Item #: 14243141
Brand: Harvey Tool
Model #: 70132-C3
Product Specifications
| Threads Per Inch | 9 |
| Material | Solid Carbide |
| Thread Size (Inch) | 7/8-9 |
| Thread Type | Internal/External |
| Shank Diameter (Inch) | 5/8 |
| Number of Flutes | 4 |
| Cutting Diameter (Decimal Inch) | 0.6200 |
| Length of Cut (Decimal Inch) | 1.3750 |
| Length of Cut (Inch) | 1-3/8 |
| Finish/Coating | AlTiN |
| Through Coolant | No |
| Minimum Nominal Diameter | 7/8 |
| Minimum Nominal Diameter (Decimal Inch) | 0.8750 |
| Overall Length (Decimal Inch) | 4.00000 |
| Overall Length (Inch) | 4 |
