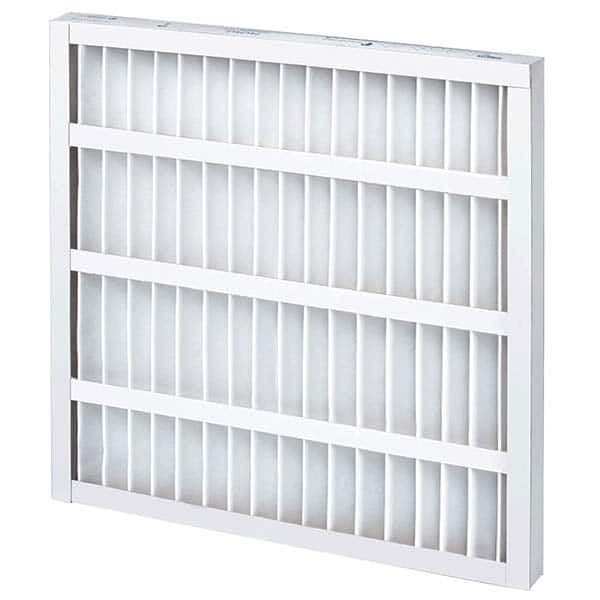

PRO-SOURCE - Pleated & Panel Air Filters; Filter Type: Wireless Pleated ; Nominal Height (Inch): 18 ; Nominal Width (Inch): 25 ; Nominal Depth (Inch): 2 ; MERV Rating: 8 ; Media Material: Synthetic
Item #: 14272173
Brand: PRO-SOURCE
Model #: PRO21142
Product Specifications
Pleated & Panel Air Filters; Filter Type: Wireless Pleated ; Nominal Height (Inch): 18 ; Nominal Width (Inch): 25 ; Nominal Depth (Inch): 2 ; MERV Rating: 8 ; Media Material: Synthetic
| Filter Type | Wireless Pleated |
| Nominal Height (Inch) | 18 |
| Nominal Width (Inch) | 25 |
| Nominal Depth (Inch) | 2 |
| MERV Rating | 8 |
| Media Material | Synthetic |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 17.500 |
| Actual Width (Decimal Inch) | 24.500 |
| Actual Depth (Inch) | 0.875 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 1550 |
| Initial Resistance at FPM (Inches w.g.) | 0.18 (at 375 FPM); 0.26 (at 500 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Maximum Temperature (F) | 150.000 |
| Capacity | Standard |
| Pleats Per Square Foot | 9 |
| Frame Material | Beverage Board |
| For Use With | Any Unit |
| Standards Met | UL 900 |
