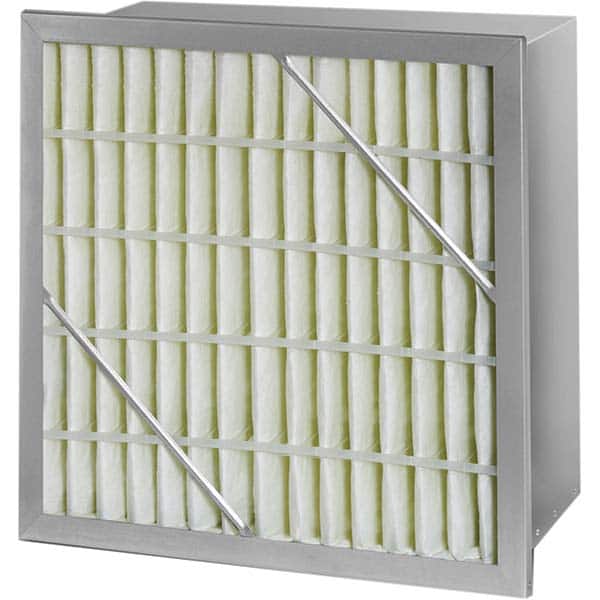

Pleated Air Filter: 24 x 20 x 6″, MERV 15, Rigid Cell Fiberglass, Galvanized Steel Frame, 500 CFM
Item #: 14274526
Brand: PRO-SOURCE
Model #: PRO16398
Product Specifications
| Filter Type | Rigid Cell |
| Pleat Type | Rigid Cell |
| Media Material | Fiberglass |
| Frame Material | Galvanized Steel |
| Air Flow | 500 CFM |
| Nominal Depth (Inch) | 6 |
| Nominal Depth | 6 in |
| Nominal Width (Inch) | 20 |
| Nominal Width | 20 in |
| Nominal Height | 24 in |
| Nominal Height (Inch) | 24 |
| Initial Resistance | 0.31 (at 250 FPM);0.57 (at 375 FPM);0.91 (at 500 FPM);0.37 (at 625 FPM) in wg |
| Integrated Frame | Yes |
| Actual Depth (Inch) | 5-3/4 |
| Actual Depth | 5.75 in |
| Maximum Air Flow (FPM) | 500 |
| Actual Width | 19.38 in |
| Actual Height | 23.38 in |
| Standards | UL 900 |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Merv Rating | 15 |
| Maximum Temperature (F) ( - 0 Decimals) | 180 |
