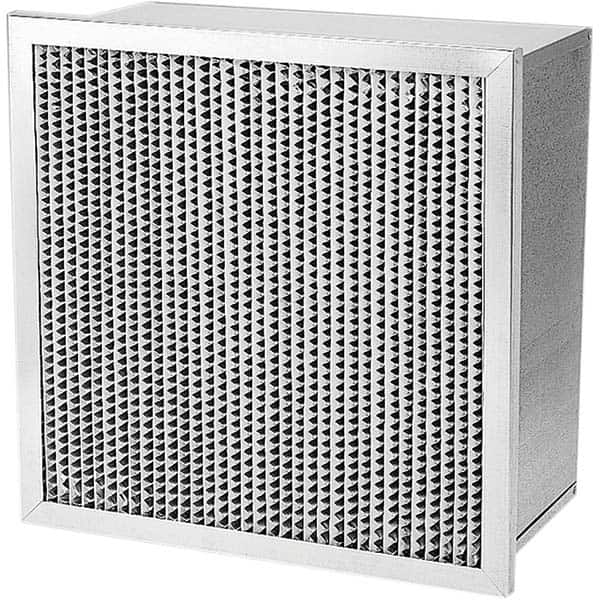

PRO-SOURCE - Pleated & Panel Air Filters; Filter Type: Cartridge ; Nominal Height (Inch): 24 ; Nominal Width (Inch): 24 ; Nominal Depth (Inch): 12 ; MERV Rating: 13 ; Media Material: Wet-Laid Microfiber Paper
Item #: 14278600
Brand: PRO-SOURCE
Model #: PRO16274
Product Specifications
Pleated & Panel Air Filters; Filter Type: Cartridge ; Nominal Height (Inch): 24 ; Nominal Width (Inch): 24 ; Nominal Depth (Inch): 12 ; MERV Rating: 13 ; Media Material: Wet-Laid Microfiber Paper
| Filter Type | Cartridge |
| Nominal Height (Inch) | 24 |
| Nominal Width (Inch) | 24 |
| Nominal Depth (Inch) | 12 |
| MERV Rating | 13 |
| Media Material | Wet-Laid Microfiber Paper |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 23.500 |
| Actual Width (Decimal Inch) | 23.500 |
| Actual Depth (Inch) | 11.5 |
| Maximum Air Flow (FPM) | 500 |
| CFM | 500 |
| Initial Resistance at FPM (Inches w.g.) | 0.20 (at 250 FPM); 0.35 (at 375 FPM); 0.50 (at 500 FPM); 0.60 (at 625 FPM) |
| Final Resistance at FPM (Inches w.g.) | 1.5 |
| Maximum Temperature (F) | 200.000 |
| Frame Material | Galvanized Steel |
| Standards Met | UL 900 |
