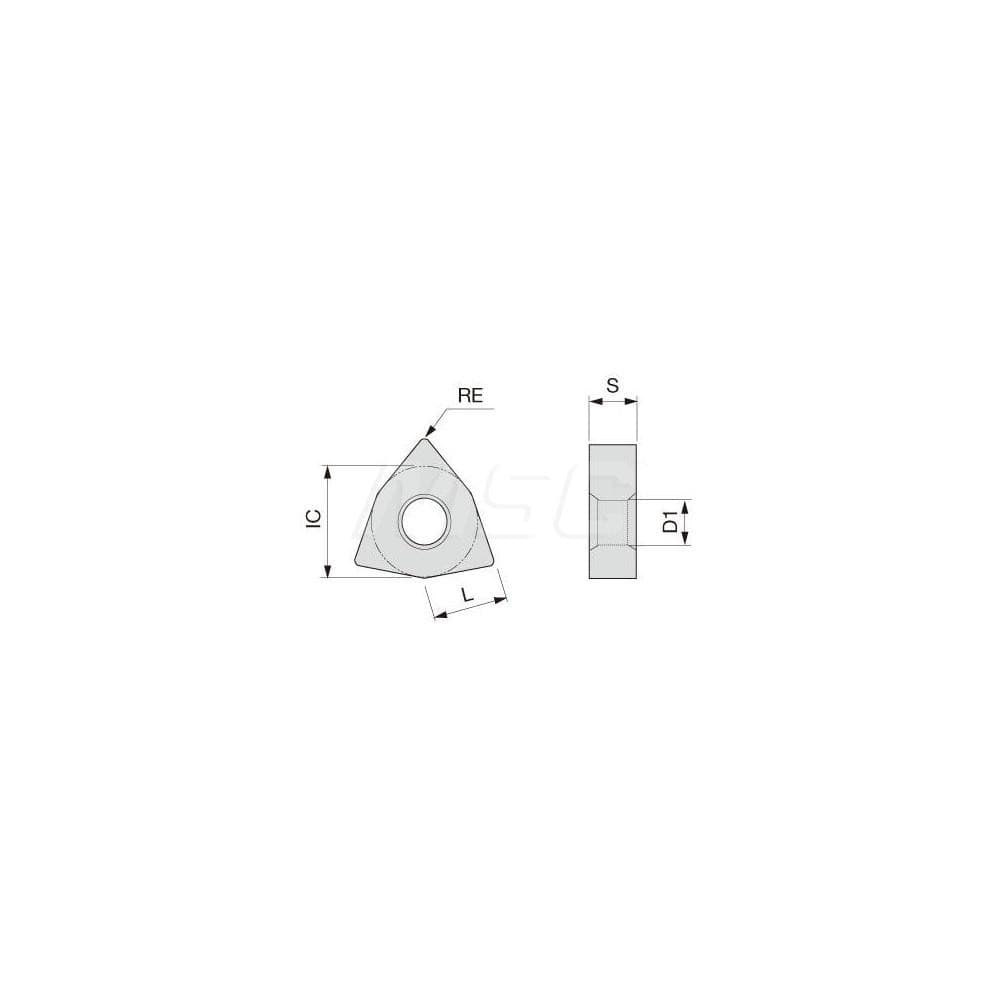

Turning Insert: WNMG432 TH10, Solid Carbide Uncoated Finish, Neutral, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, 80.0 ° N/A Trigon, Series WNMG
Item #: 14359822
Brand: Tungaloy
Model #: 6809675
Product Specifications
| Insert Style | WNMG |
| Insert Size Code | 432 |
| Insert Shape | Trigon |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TH10 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Series | WNMG |
| Coating Process | Uncoated |
| Rake | Negative |
| Wiper Edge | No |
| Number Of Cutting Edges | 6 |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Cast Iron; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Ansi Code | WNMG432TH10 |
| Iso Code | WNMG080408 TH10 |
| Chip Breaker | AR |
| Coating/Finish | Uncoated |
