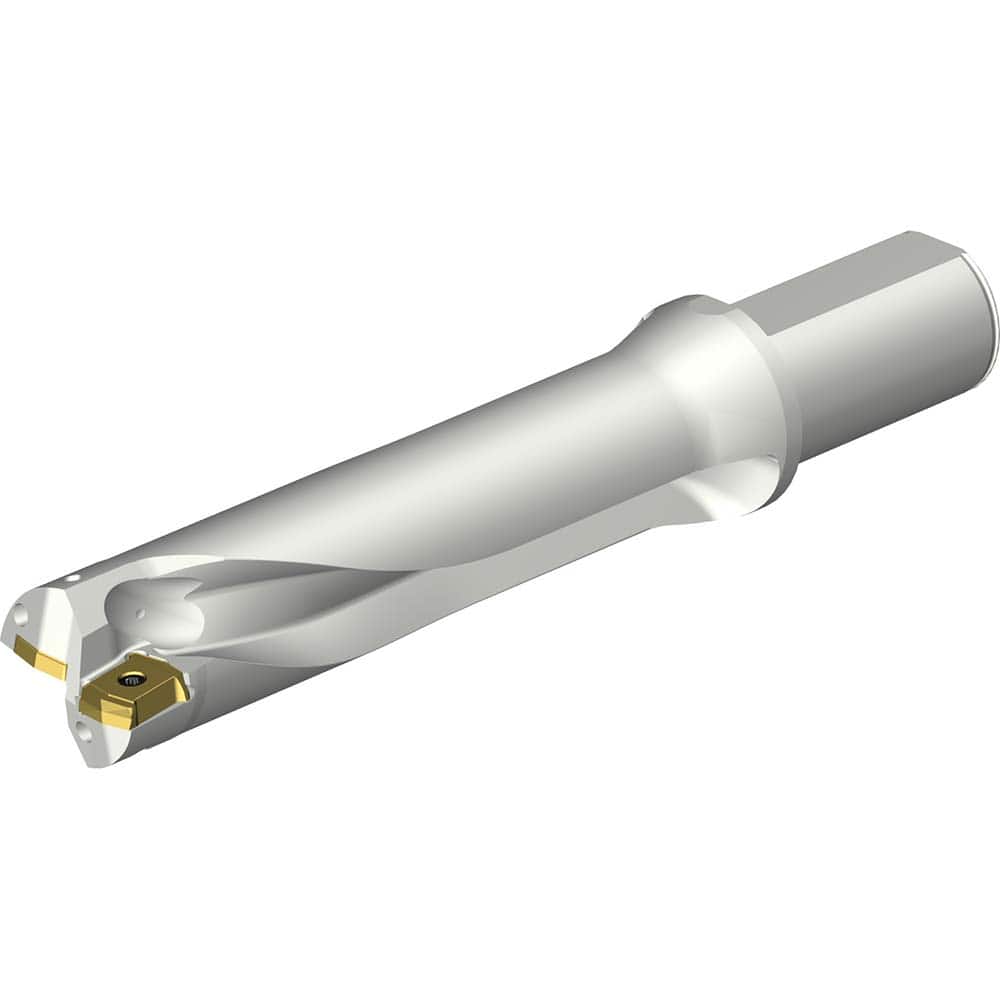

Sandvik Coromant - Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Inch): 1.625 ; Maximum Drill Depth (Decimal Inch): 6.5503 ; Shank Type: Straight ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
Item #: 14363469
Brand: Sandvik Coromant
Model #: 7548964
Product Specifications
Indexable Insert Drills; Drill Style: DS20 ; Drill Diameter (Inch): 1.625 ; Maximum Drill Depth (Decimal Inch): 6.5503 ; Shank Type: Straight ; Shank Diameter (Inch): 1.5 ; Cutting Direction: Right Hand
| Drill Style | DS20 |
| Drill Diameter (Inch) | 1.625 |
| Maximum Drill Depth (Decimal Inch) | 6.5503 |
| Shank Type | Straight |
| Shank Diameter (Inch) | 1.5 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Carbide |
| Overall Length/Projection (Decimal Inch) | 10.5759 |
| Insert Compatibility | DS20-0608 |
| Flute Length (Decimal Inch) | 7.7701 |
| Body Length (Decimal Inch) | 6.6660 |
| Series | CoroDrill DS20 |
