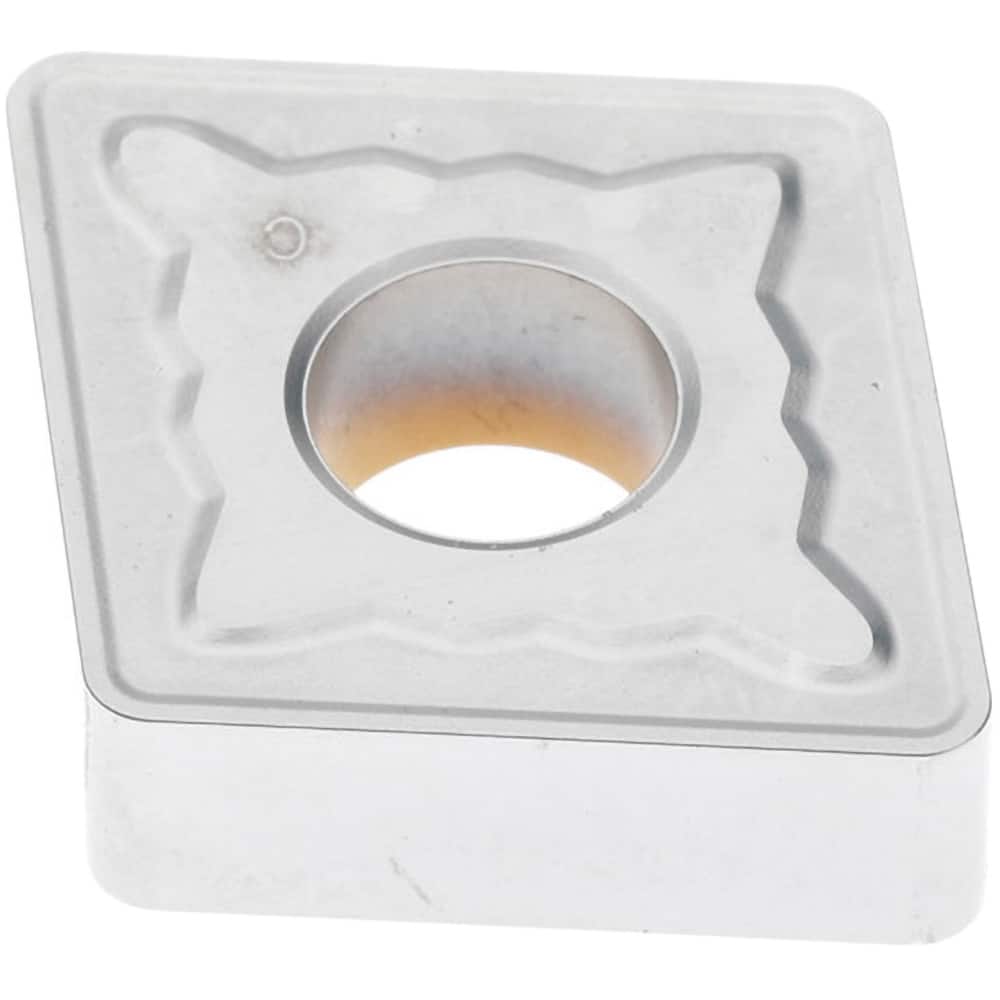

CNMG866-MR7 Carbide Turning Insert 1.016″ Long, 1″ Inscribed Circle, 0.094″ Corner Radius, 3/8″ Thick, 80° Diamond
Item #: 14378087
Brand: Seco
Model #: 03310418
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 866 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP25 |
| Hole Diameter (Decimal Inch) | 0.3590 |
| Inscribed Circle (Inch) | 1 |
| Inscribed Circle (Decimal Inch) | 1.0000 |
| Insert Holding Method | Screw; Clamp |
| Insert Thickness (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 80.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Insert Length (Decimal Inch) | 1.0160 |
| Iso Code | CNMG250924-MR7 |
| Manufacturers Catalog Number | CNMG866-MR7 |
| Chip Breaker | MR7 |
| Rake Angle | 20 |
| Cutting Edge Style | Honed |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
