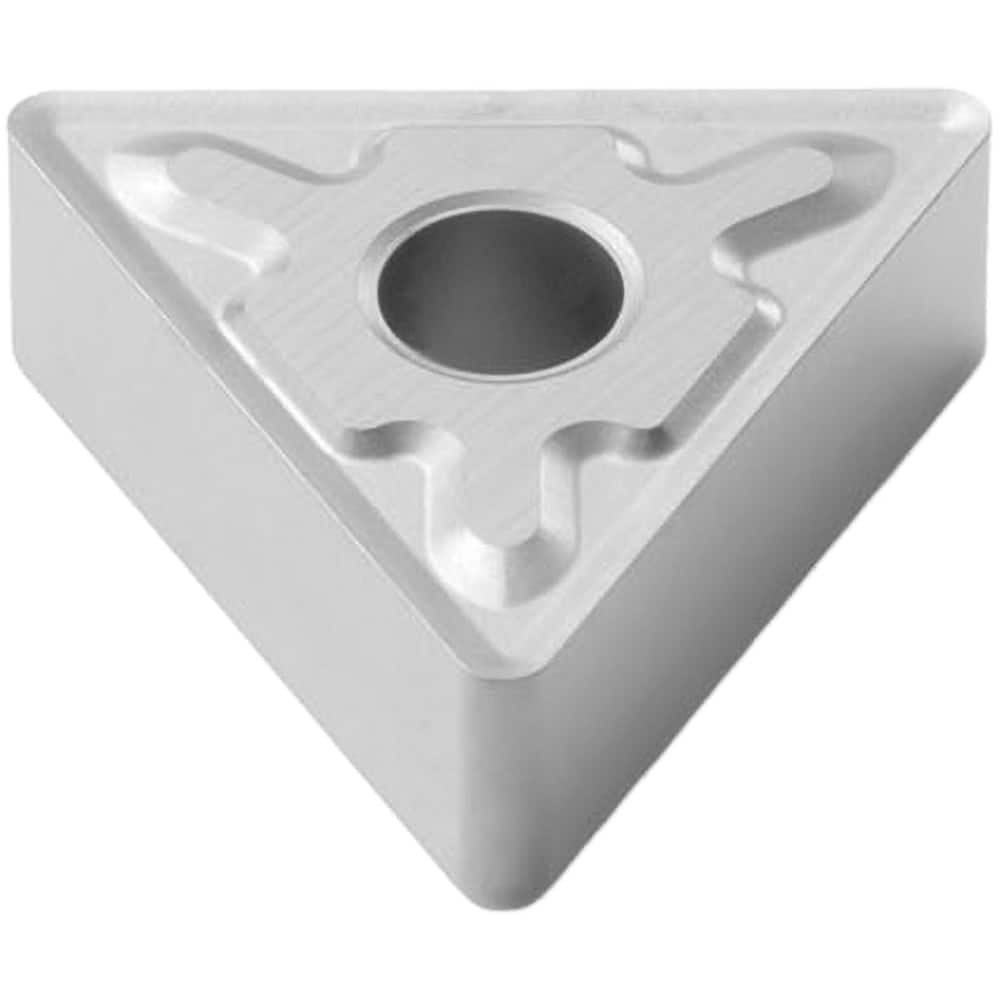

TNMG666-MR7 Carbide Turning Insert Neutral, 1.299″ Long, 3/4″ Inscribed Circle, 0.094″ Corner Radius, 3/8″ Thick, 60° Triangle
Item #: 14378186
Brand: Seco
Model #: 03280009
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 666 |
| Insert Shape | Triangle |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | TP25 |
| Hole Diameter (Decimal Inch) | 0.3120 |
| Inscribed Circle (Inch) | 3/4 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Insert Holding Method | Screw; Clamp |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/8 |
| Corner Radius (Decimal Inch) | 0.0940 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Insert Length (Decimal Inch) | 1.2990 |
| Iso Code | TNMG330924-MR7 |
| Manufacturers Catalog Number | TNMG666-MR7 |
| Cutting Direction | Neutral |
| Chip Breaker | MR7 |
| Rake Angle | 17.5 |
| Cutting Edge Style | Honed |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing; Turning |
