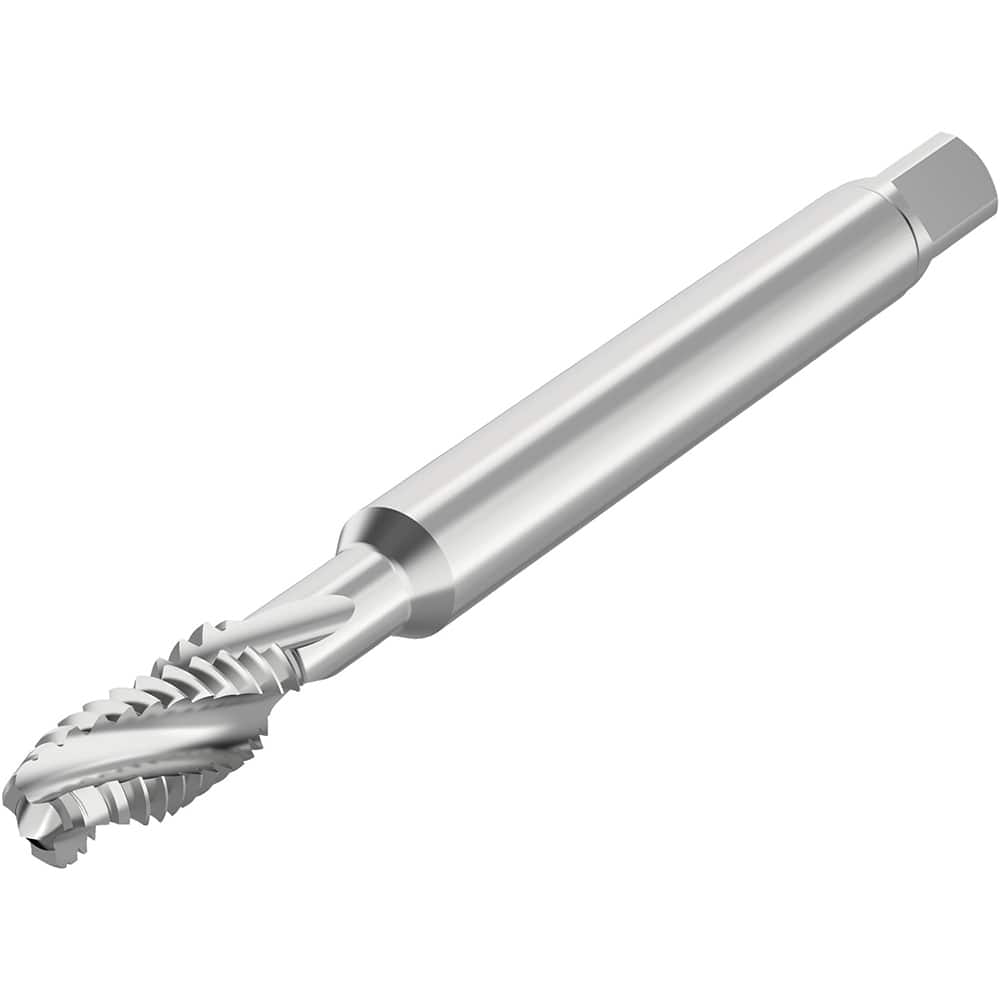

Spiral Flute Tap: #12-28, UNF, 3 Flute, Modified Bottoming, 3B Class of Fit, HSS-E-PM, Bright/Uncoated Right Hand Flute, Right Hand Thread, Series MTH
Item #: 14417802
Brand: Seco
Model #: 10001129
Product Specifications
| Material | HSS-E-PM |
| Coating/Finish | Bright/Uncoated |
| Thread Size (Inch - 0 Decimals) | #12-28 |
| Thread Standard | UNF |
| Thread Direction | Right Hand |
| Thread Length (Mm) ( - 3 Decimals) | 15.00 |
| Overall Length (mm) | 80.00 |
| Chamfer | Modified Bottoming |
| Flute Direction | Right Hand |
| Helix Angle | 25 |
| Oversize | No |
| Shank Diameter (mm) | 6.00 |
| Tapping Depth (mm) | 15.00 |
| Flute Style | Slow |
| Material Application | Super Alloy; Difficult-To-Machine Steel |
| Series | MTH |
| Shank Length (mm) | 65.00 |
| Coolant Through | No |
| Number Of Flutes | 3 |
| Class Of Fit | 3B |
