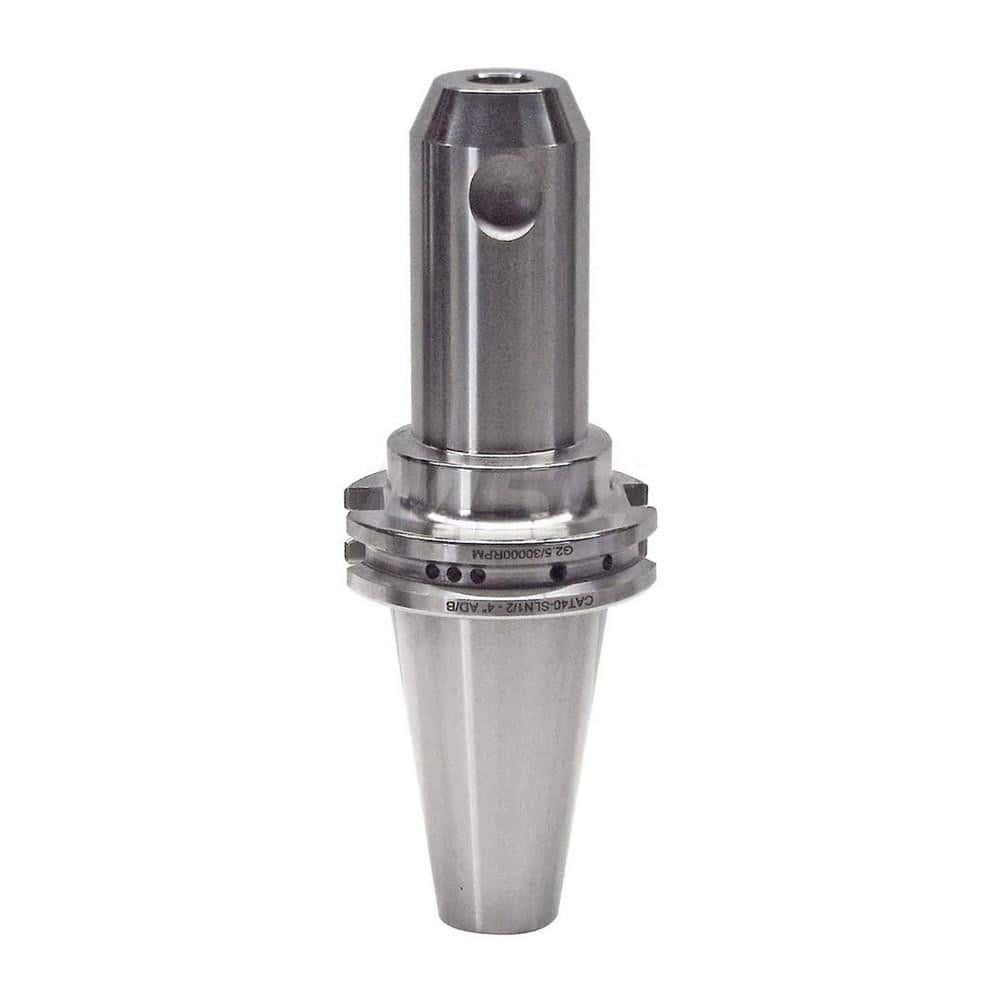

End Mill Holder: CAT40, 1/2″ Hole 4″ Projection, 1.38″ Nose Dia, Through Coolant
Item #: 14529242
Brand: ShopForce
Model #: T0390
Product Specifications
| Modular Connection Size | CAT40 |
| Taper Size | CAT40 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Hole Diameter (Inch) | 1/2 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3800 |
| Projection (Inch) | 4 |
| Projection (Decimal Inch - 4 Decimals) | 4.0000 |
| Through Coolant | Yes |
| TIR (Decimal Inch) | 0.000200 |
| Coolant Type | Through-Spindle; Through-Bore & DIN Flange |
| Drawbar Thread Size | 5/8-11 |
| Balanced To Rpm | 30000 |
| Finish Coating | Bright |
