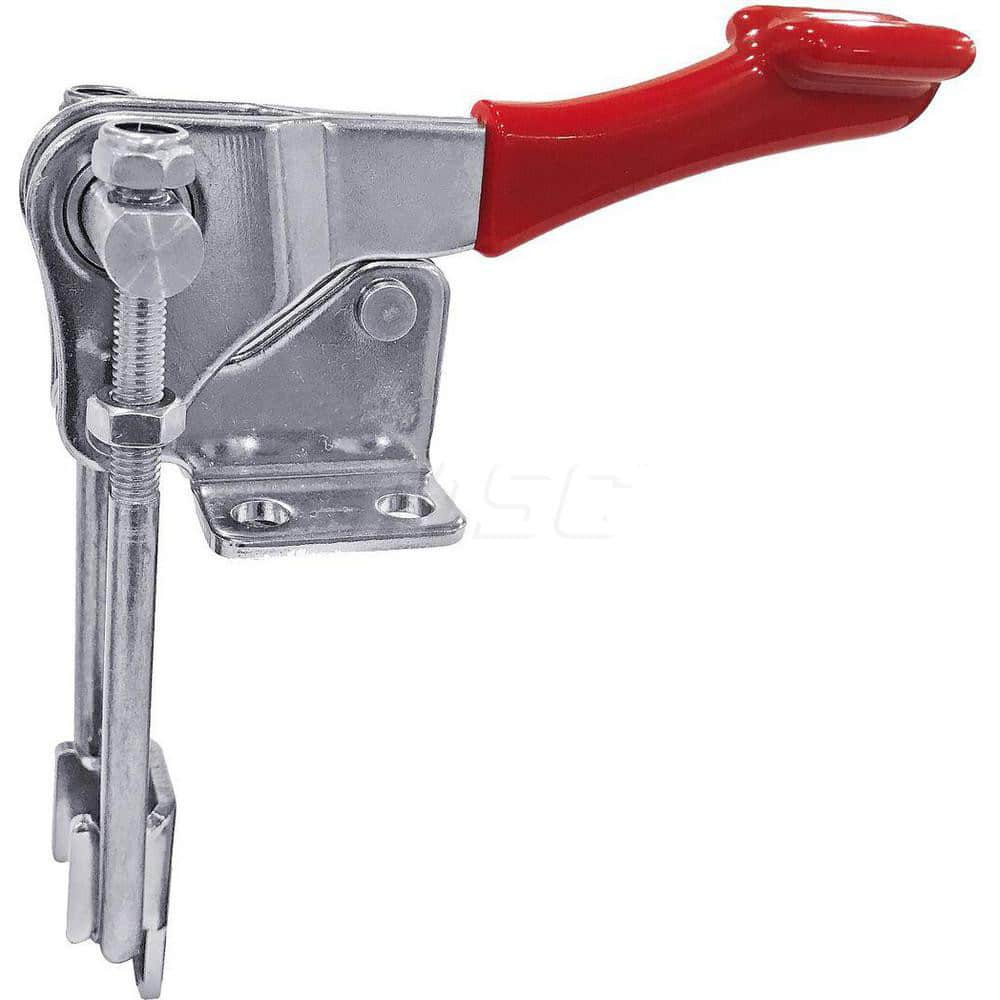

Pull-Action Latch Clamp: Vertical, 1,000 lb, U-Hook, Flanged Base 4.73″ OAL, Straight Handle, Stainless Steel
Item #: 14530489
Brand: ShopForce
Model #: 16000
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 4448.22 |
| Load Capacity (Lb. - 3 Decimals) | 1000.00 |
| Base Style | Flanged |
| Material | Stainless Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 4.7300 |
| Overall Length (mm) | 120.00 |
| Overall Height (Mm - 5 Decimals) | 102.10 |
| Overall Height (Decimal Inch) | 4.0200 |
| Handle Color | Red |
| Base Length | 1.31 |
| Base Length (mm) | 33.27 |
| Base Width (Inch) | 1.6300 |
| Base Width | 41.40 |
| Mounting Hole Diameter (mm) | 7.11 |
| Mounting Hole Diameter | 0.2800 |
| Width Distance Between Mount Holes (mm) | 25.40 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7500 |
| Length Distance Between Mount Holes (mm) | 19.05 |
| Width Distance Between Mounting Holes | 1.0000 |
