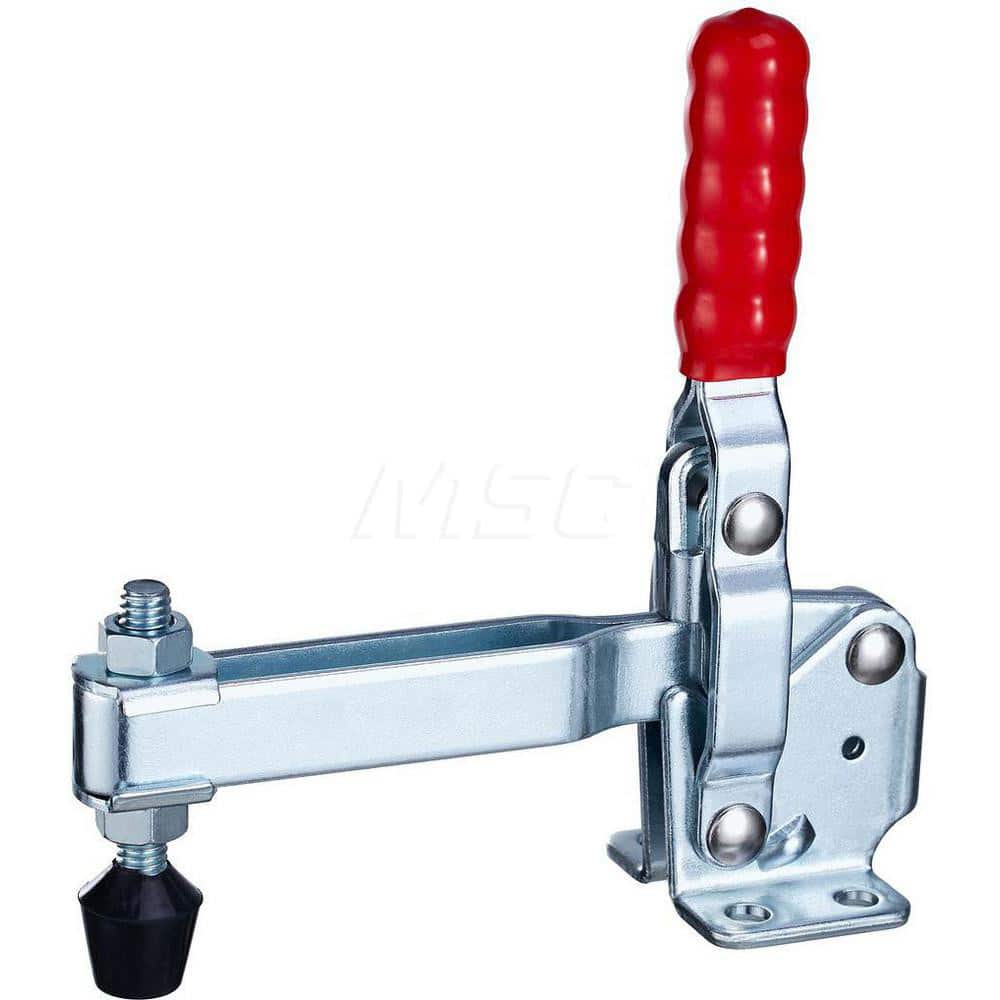

Manual Hold-Down Toggle Clamp: Vertical, 500 lb Capacity, U-Bar, Flanged Base 60 ° Handle Movement, 100 ° Bar Opening, Plastic
Item #: 14530745
Brand: ShopForce
Model #: 50360
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 226.80 |
| Holding Capacity (N) | 2224.11 |
| Holding Capacity (Lb.) | 500.00 |
| Length Distance Between Mount Holes (Inch) | 1-1/4 |
| Width Distance Between Mount Holes (Inch) | 3/4 |
| Height Under Bar (Inch) | 1-1/4 |
| Overall Length (Inch) | 5-1/2 |
| Overall Height (Decimal Inch) | 5.6700 |
| Base Width (Inch) | 1.8100 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2800 |
| Bar Opening (Degrees) | 100 |
| Handle Movement (Degrees) | 60 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length | 2-1/2 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.7500 |
| Finish Coating | Steel |
