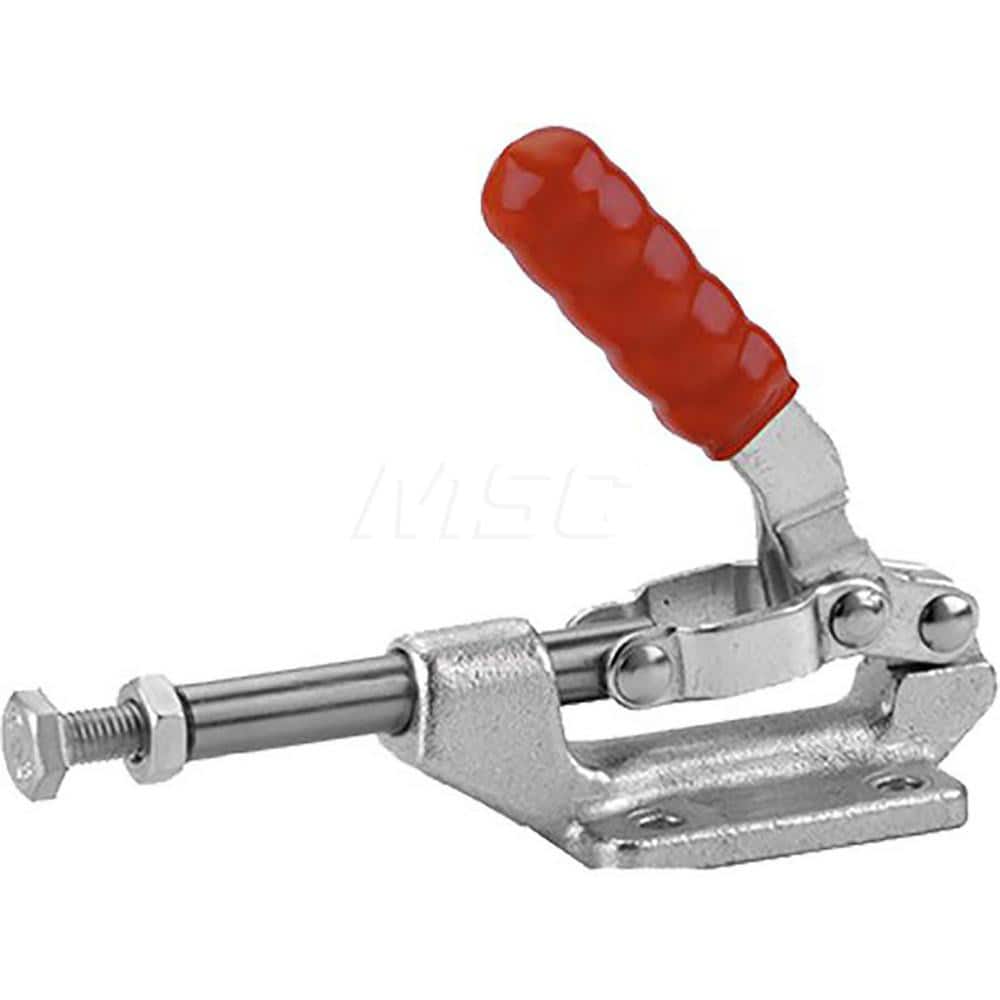

Standard Straight Line Action Clamp: 600 lb Load Capacity, Flanged Base 4 Mounting Hole, 0.234″ Hole, 0.43″ Plunger Dia, Contoured Plastic Softgrip & Straight Handle
Item #: 14530810
Brand: ShopForce
Model #: 30140
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 600.00 |
| Load Capacity (N) | 2668.93 |
| Load Capacity | 600.00 |
| Plunger Travel (Inch) | 1-1/4 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height (Decimal Inch) | 0.9700 |
| Plunger Diameter (Decimal Inch) | 0.4300 |
| Base Style | Flanged |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Steel |
| Overall Length (Decimal Inch) | 4.9000 |
| Overall Height (Decimal Inch) | 3.2300 |
| Base Length (Decimal Inch) | 2.2900 |
| Base Width (Inch) | 1.8800 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 1.4400 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.3200 |
| Mounting Hole Diameter (Decimal Inch) | 0.2340 |
| Jam Nut Hex Size (Decimal Inch) | 0.4950 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 272.16 |
| Holding Capacity (N) | 2668.93 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (Decimal Inch) | 2.0000 |
| Number Of Mounting Holes | 4 |
| Holding Capacity (Lb.) | 600.00 |
