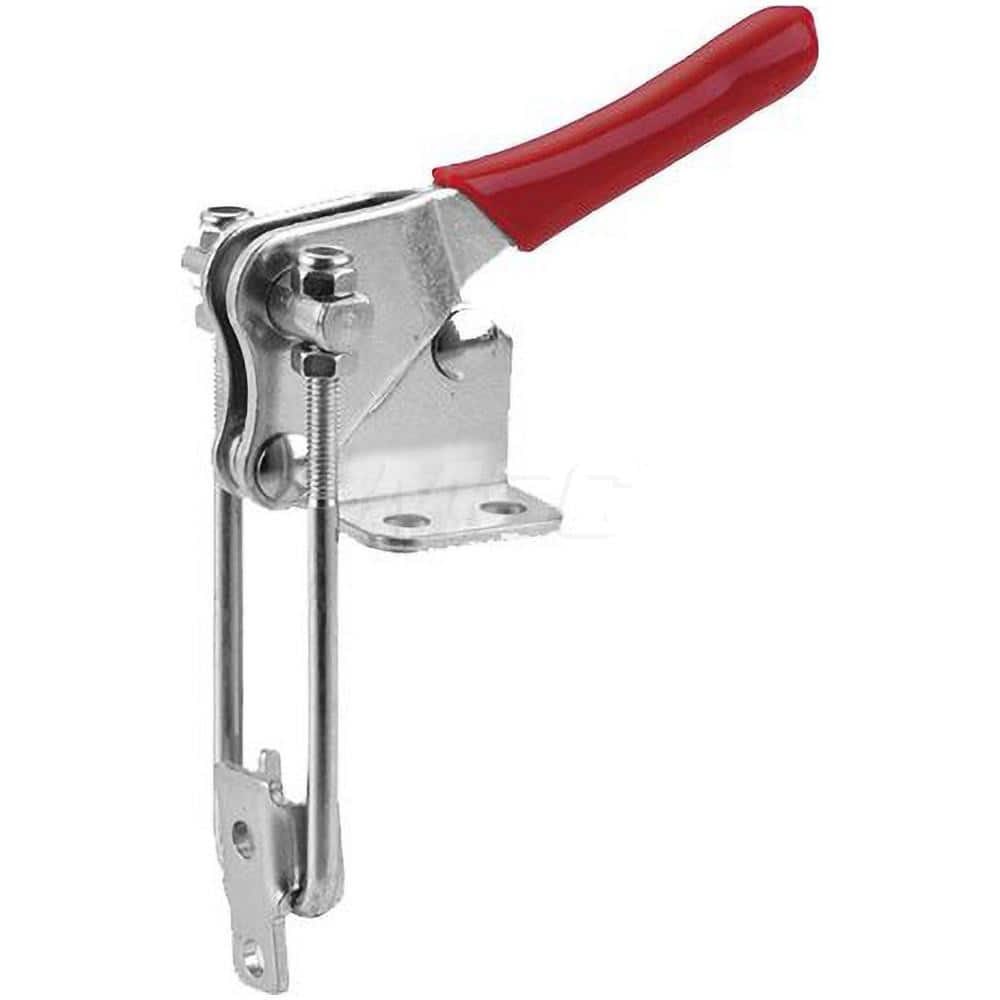

Pull-Action Latch Clamp: Vertical, 500 lb, U-Hook, Flanged Base 3.11″ OAL, Straight Handle, Steel
Item #: 14531065
Brand: ShopForce
Model #: 40180
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 2224.11 |
| Load Capacity (Lb. - 3 Decimals) | 500.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 3.1100 |
| Overall Length (mm) | 79.00 |
| Overall Height (Mm - 5 Decimals) | 53.34 |
| Overall Height (Decimal Inch) | 2.1000 |
| Handle Color | Red |
| Base Length | 1.02 |
| Base Length (mm) | 25.91 |
| Base Width (Inch) | 1.2800 |
| Base Width | 32.51 |
| Mounting Hole Diameter (mm) | 5.33 |
| Mounting Hole Diameter | 0.2100 |
| Width Distance Between Mount Holes (mm) | 22.10 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.5100 |
| Length Distance Between Mount Holes (mm) | 12.95 |
| Width Distance Between Mounting Holes | 0.8700 |
