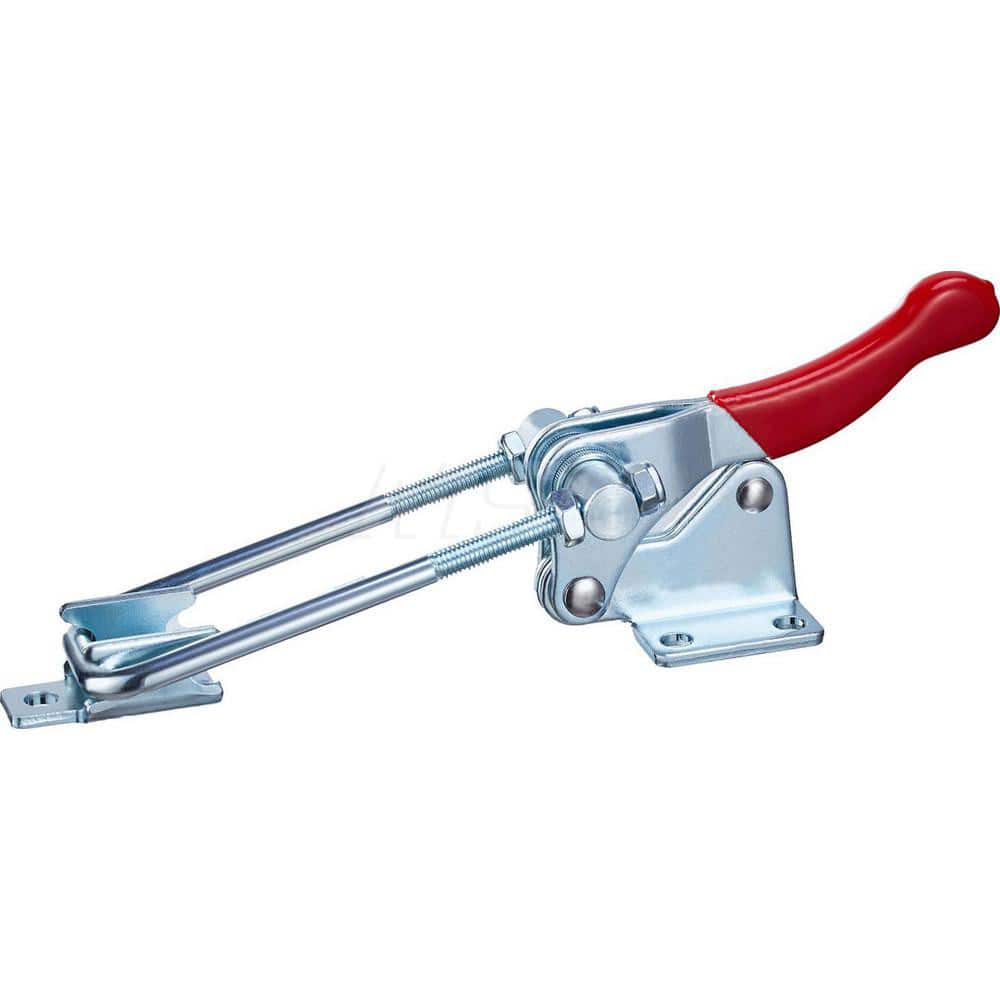

Pull-Action Latch Clamp: Vertical, 2,000 lb, U-Hook, Flanged Base 8.46″ OAL, Straight Handle, Steel
Item #: 14531461
Brand: ShopForce
Model #: 40140
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 8896.44 |
| Load Capacity (Lb. - 3 Decimals) | 2000.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 8.4600 |
| Overall Length (mm) | 215.00 |
| Overall Height (Mm - 5 Decimals) | 74.16 |
| Overall Height (Decimal Inch) | 2.9200 |
| Handle Color | Red |
| Base Length | 2.38 |
| Base Length (mm) | 60.45 |
| Base Width (Inch) | 2.1300 |
| Base Width | 54.10 |
| Mounting Hole Diameter (mm) | 8.38 |
| Mounting Hole Diameter | 0.3300 |
| Width Distance Between Mount Holes (mm) | 38.10 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Length Distance Between Mount Holes (mm) | 41.40 |
| Width Distance Between Mounting Holes | 1.5000 |
