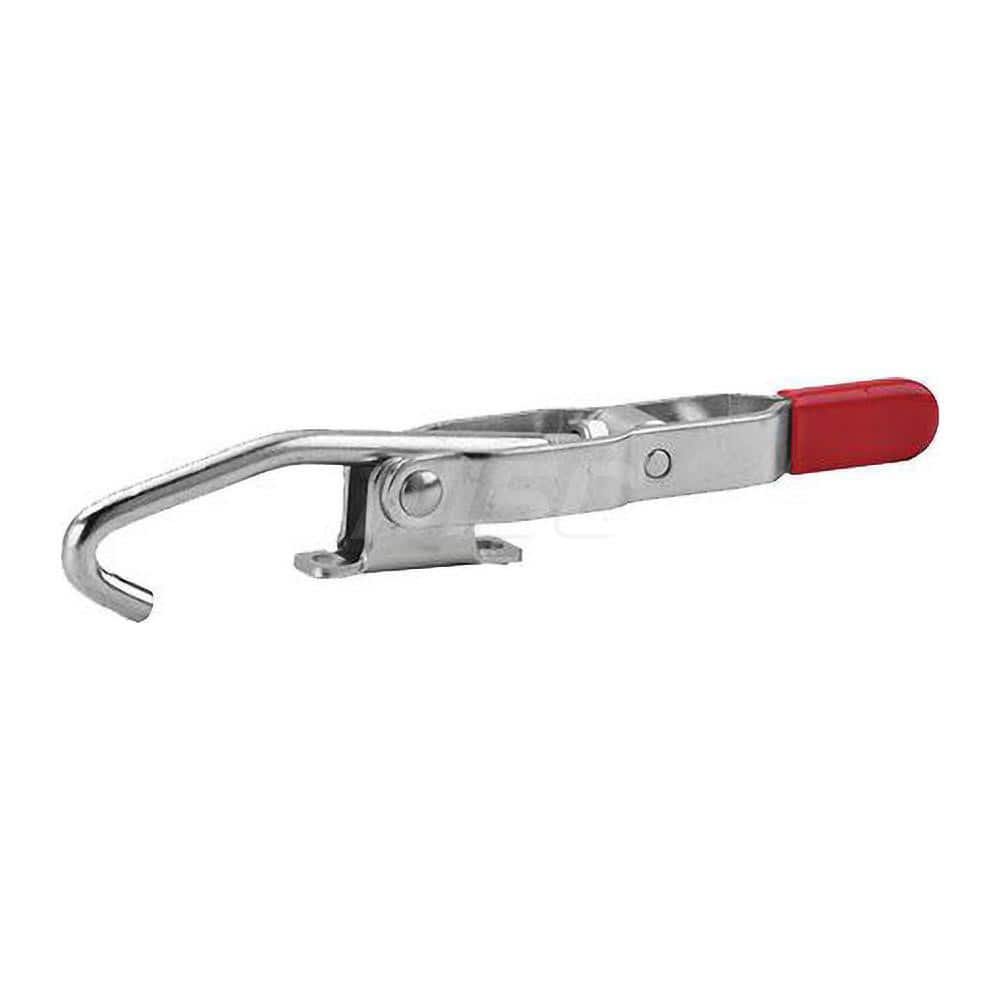

Pull-Action Latch Clamp: Vertical, 375 lb, J-Hook, Flanged Base 8.31″ OAL, Straight Handle, Steel
Item #: 14531750
Brand: ShopForce
Model #: 40160
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | J-Hook |
| Load Capacity (N) | 1668.08 |
| Load Capacity (Lb. - 3 Decimals) | 375.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 8.3100 |
| Overall Length (mm) | 211.00 |
| Overall Height (Mm - 5 Decimals) | 36.57 |
| Overall Height (Decimal Inch) | 1.4400 |
| Handle Color | Red |
| Base Length | 2.00 |
| Base Length (mm) | 50.80 |
| Base Width (Inch) | 0.5600 |
| Base Width | 14.22 |
| Mounting Hole Diameter (mm) | 6.60 |
| Mounting Hole Diameter | 0.2600 |
| Width Distance Between Mount Holes (mm) | 6.60 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.5000 |
| Length Distance Between Mount Holes (mm) | 38.10 |
| Width Distance Between Mounting Holes | 0.2600 |
