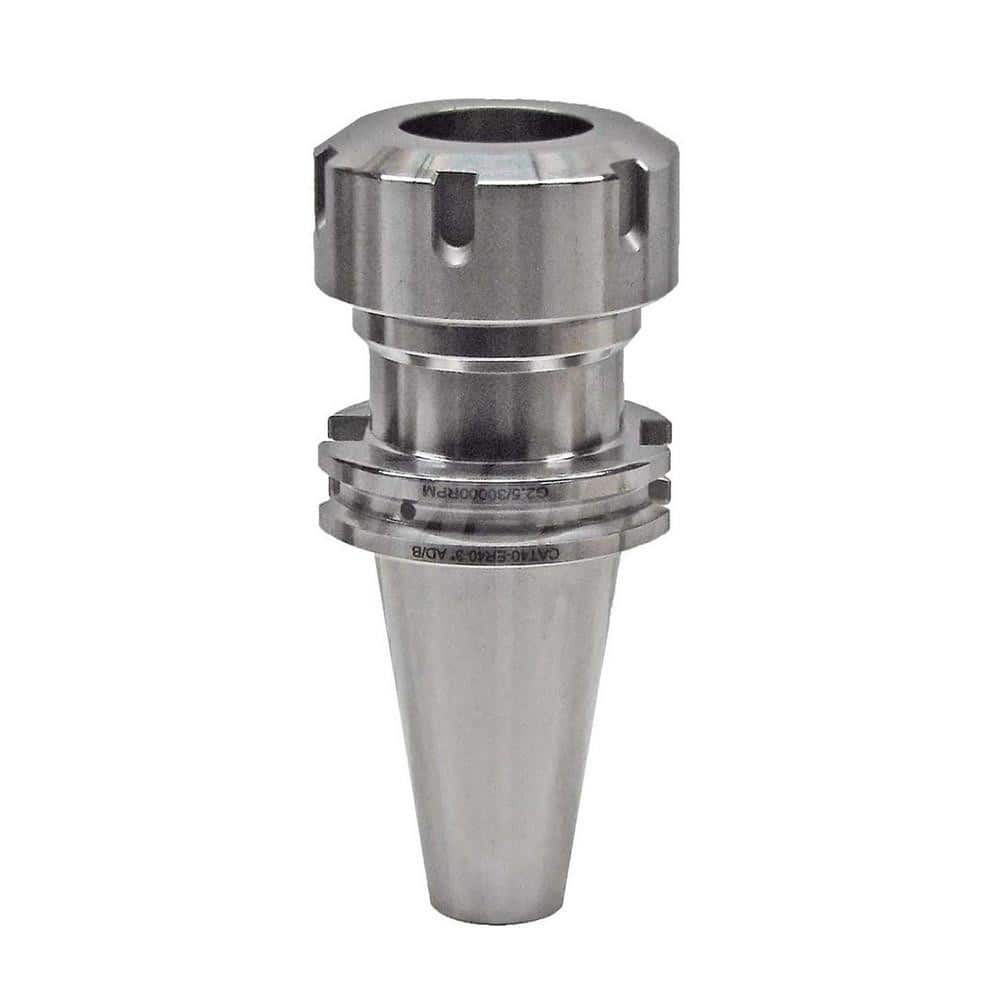

Collet Chuck: ER Collet, CAT Taper Shank 3″ Projection, 0.0001″ TIR, Balanced to 30,000 RPM, Through Coolant
Item #: 14533533
Brand: ShopForce
Model #: T0312
Product Specifications
| Collet System | ER |
| Collet Series | ER40 |
| Shank Type | CAT Taper |
| Taper Size | CAT 40 |
| Projection (Decimal Inch - 4 Decimals) | 3.0000 |
| Projection (mm) | 76.00 |
| Projection (Inch) | 3 |
| Through Coolant | Yes |
| Maximum RPM | 30000 |
| TIR (Decimal Inch) | 0.000100 |
| Coolant Type | Through-Spindle; Through-Bore & DIN Flange |
| Balanced To Rpm | 30000 |
| Thread Size (Inch - 0 Decimals) | 5/8-11 |
