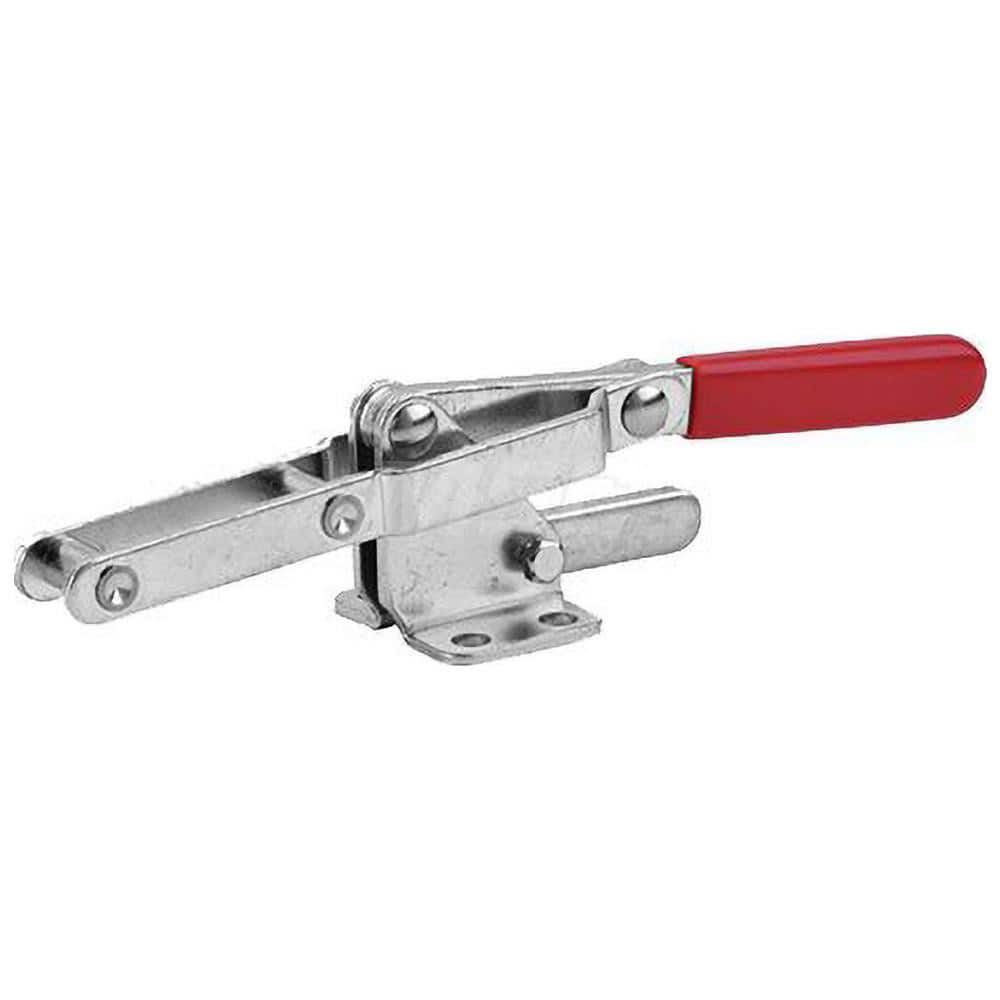

Pull-Action Latch Clamp: Vertical, 375 lb, U-Hook, Flanged Base 8.174″ OAL, Straight Handle, Steel
Item #: 14536734
Brand: ShopForce
Model #: 40060
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 1668.08 |
| Load Capacity (Lb. - 3 Decimals) | 375.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 8.1740 |
| Overall Length (mm) | 208.00 |
| Overall Height (Mm - 5 Decimals) | 47.75 |
| Overall Height (Decimal Inch) | 1.8800 |
| Handle Color | Red |
| Base Length | 1.36 |
| Base Length (mm) | 34.54 |
| Base Width (Inch) | 1.7400 |
| Base Width | 44.20 |
| Mounting Hole Diameter (mm) | 7.11 |
| Mounting Hole Diameter | 0.2800 |
| Width Distance Between Mount Holes (mm) | 31.50 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.7400 |
| Length Distance Between Mount Holes (mm) | 18.80 |
| Width Distance Between Mounting Holes | 1.2400 |
