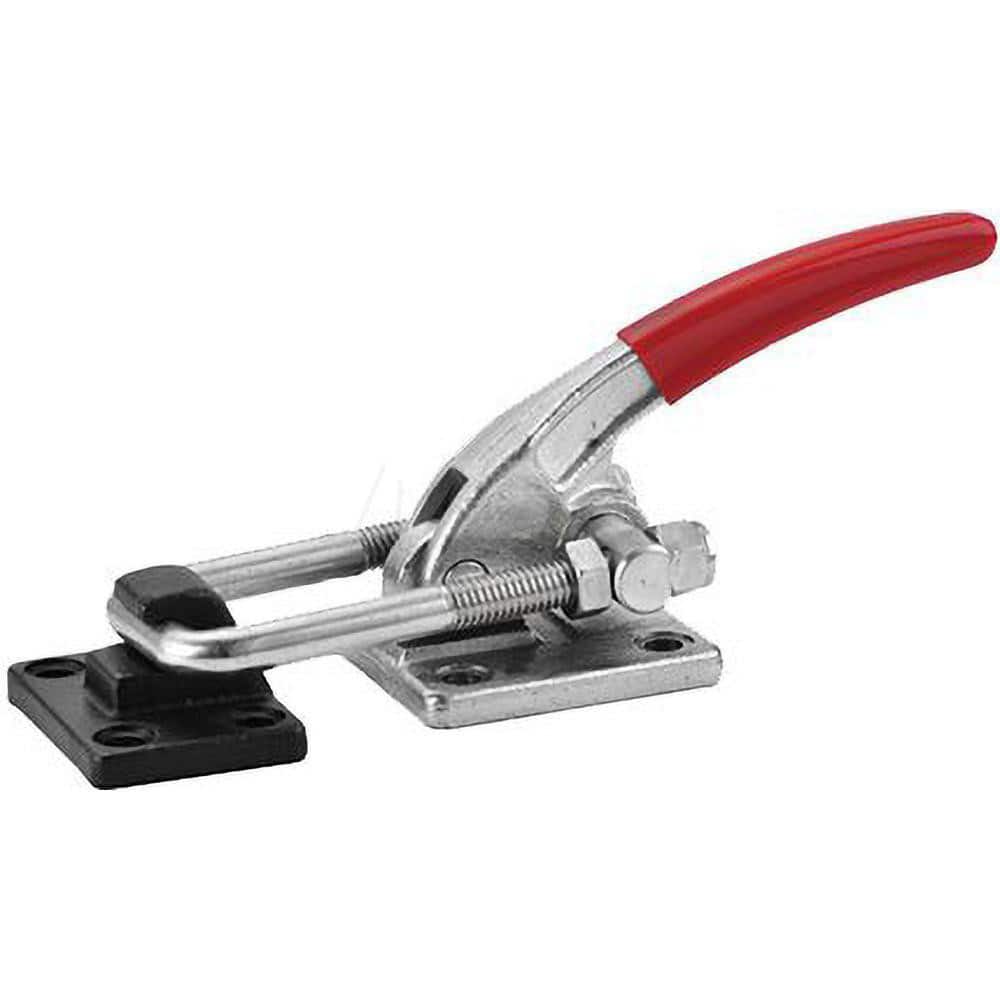

Pull-Action Latch Clamp: Vertical, 7,500 lb, U-Hook, Flanged Base 8.63″ OAL, Straight Handle, Steel
Item #: 14536817
Brand: ShopForce
Model #: 40000
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 33361.66 |
| Load Capacity (Lb. - 3 Decimals) | 7500.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 8.6300 |
| Overall Length (mm) | 219.00 |
| Overall Height (Mm - 5 Decimals) | 95.25 |
| Overall Height (Decimal Inch) | 3.7500 |
| Handle Color | Red |
| Base Length | 3.37 |
| Base Length (mm) | 85.60 |
| Base Width (Inch) | 3.1300 |
| Base Width | 79.50 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter | 0.4100 |
| Width Distance Between Mount Holes (mm) | 57.15 |
| Length Distance Between Mount Holes (Decimal Inch) | 2.2500 |
| Length Distance Between Mount Holes (mm) | 57.15 |
| Width Distance Between Mounting Holes | 2.2500 |
