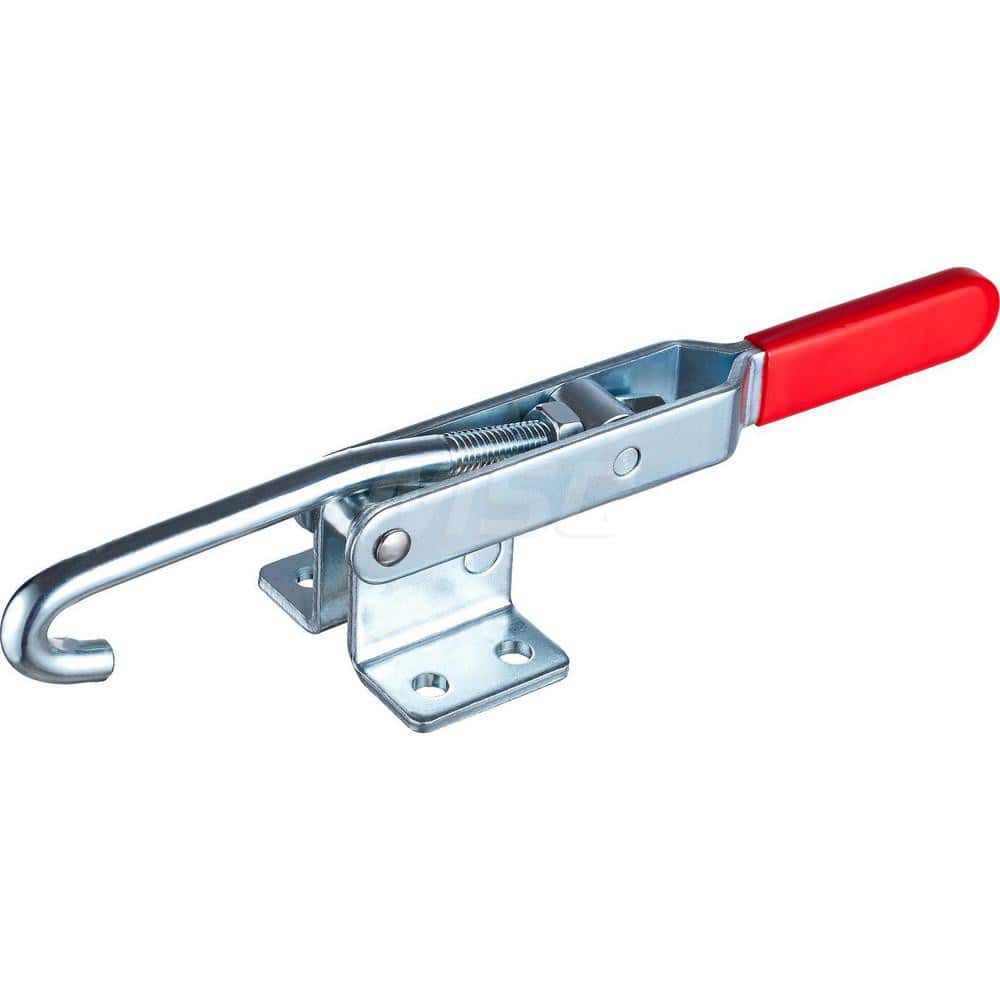

Pull-Action Latch Clamp: Vertical, 1,000 lb, J-Hook, Flanged Base 13.24″ OAL, Straight Handle, Steel
Item #: 14536882
Brand: ShopForce
Model #: 40020
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | J-Hook |
| Load Capacity (N) | 4448.22 |
| Load Capacity (Lb. - 3 Decimals) | 1000.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 13.2400 |
| Overall Length (mm) | 336.00 |
| Overall Height (Mm - 5 Decimals) | 68.07 |
| Overall Height (Decimal Inch) | 2.6800 |
| Handle Color | Red |
| Base Length | 2.13 |
| Base Length (mm) | 54.10 |
| Base Width (Inch) | 3.3800 |
| Base Width | 85.85 |
| Mounting Hole Diameter (mm) | 10.41 |
| Mounting Hole Diameter | 0.4100 |
| Width Distance Between Mount Holes (mm) | 60.45 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.1300 |
| Length Distance Between Mount Holes (mm) | 28.70 |
| Width Distance Between Mounting Holes | 2.3800 |
