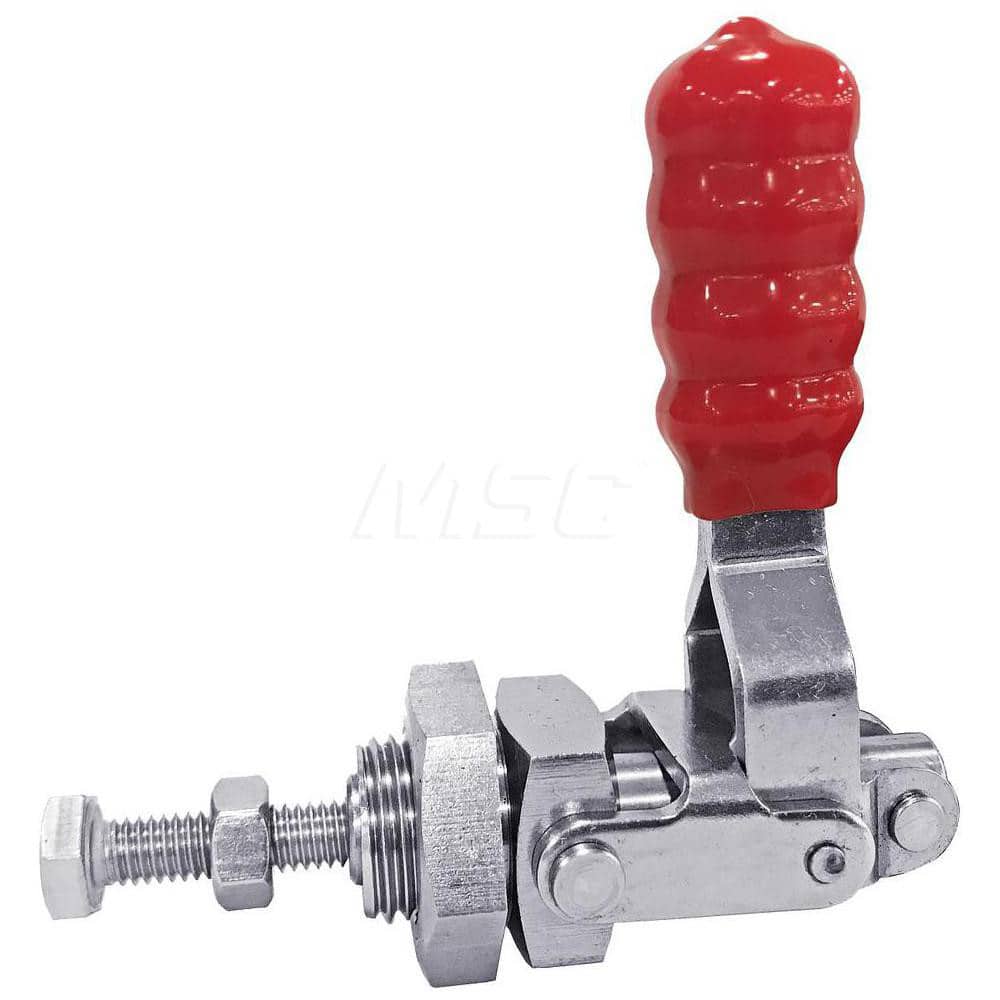

Standard Straight Line Action Clamp: 200 lb Load Capacity, 0.83″ Plunger Travel, Special Base 0.2″ Hole, 0.37″ Plunger Dia, Contoured Plastic Softgrip & Straight Handle
Item #: 14536890
Brand: ShopForce
Model #: 15060
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 200.00 |
| Load Capacity (N) | 889.64 |
| Load Capacity | 200.00 |
| Plunger Travel (Decimal Inch) | 0.8300 |
| Plunger Shape | Round |
| Plunger Thread Style | External |
| Plunger Thread Size | M6x1.00 |
| Plunger Centerline Height (Inch) | 1/2 |
| Plunger Diameter (Decimal Inch) | 0.3700 |
| Base Style | Special |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 2.5300 |
| Overall Height (Decimal Inch) | 2.9600 |
| Base Length (Decimal Inch) | 1.1800 |
| Base Width (Inch) | 1.7300 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 0.4100 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.7100 |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Jam Nut Height (Inch) | 1/2 |
| Jam Nut Hex Size (Decimal Inch) | 0.9420 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 90.72 |
| Holding Capacity (N) | 889.64 |
| Spindle Length (Decimal Inch) | 1.5700 |
| Holding Capacity (Lb.) | 200.00 |
