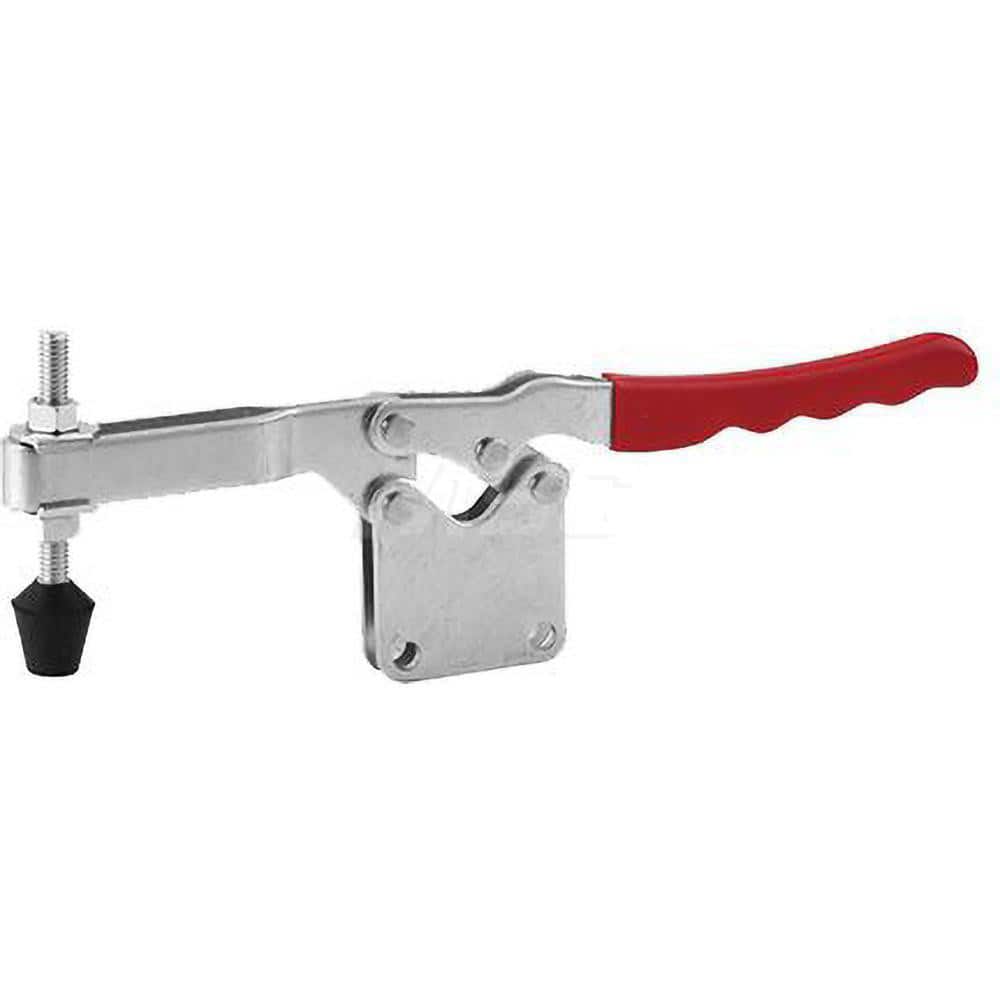

Manual Hold-Down Toggle Clamp: Horizontal, 750 lb Capacity, U-Bar, Straight Base 50 ° Handle Movement, 85 ° Bar Opening, Plastic
Item #: 14536940
Brand: ShopForce
Model #: 60040
Product Specifications
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Straight |
| Bar End Type | Closed |
| Holding Capacity (kg) | 340.19 |
| Holding Capacity (N) | 3336.17 |
| Holding Capacity (Lb.) | 750.00 |
| Length Distance Between Mount Holes (Inch) | 1.63 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Height Under Bar (Decimal Inch) | 2.4800 |
| Overall Length (Inch) | 11-1/2 |
| Overall Height (Decimal Inch) | 3.2300 |
| Base Width (Inch) | 0.6200 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.3300 |
| Bar Opening (Degrees) | 85 |
| Handle Movement (Degrees) | 50 |
| Spindle Thread Size | 3/8-16 |
| Spindle Length | 3-1/2 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 4.2100 |
| Finish Coating | Steel |
