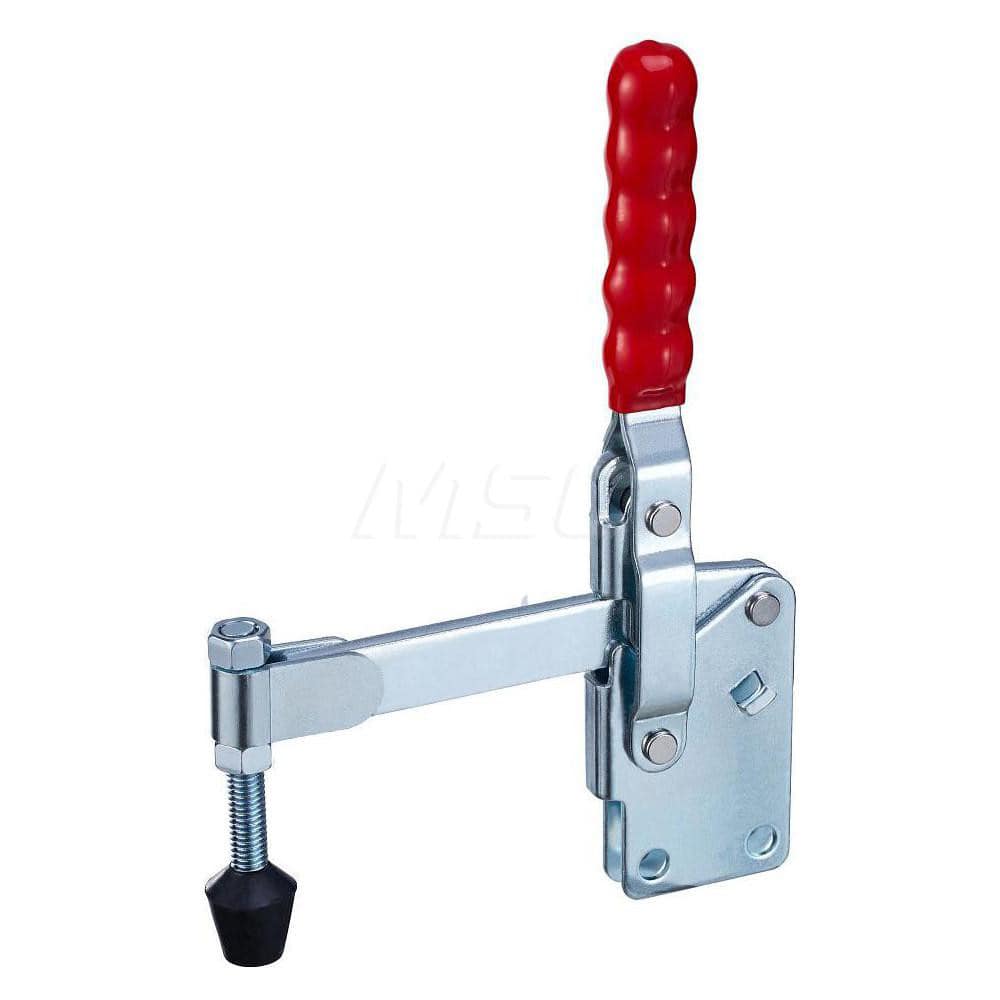

Manual Hold-Down Toggle Clamp: Vertical, 750 lb Capacity, Solid Bar, Straight Base 58 ° Handle Movement, 105 ° Bar Opening, Plastic
Item #: 14537518
Brand: ShopForce
Model #: 50200
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Straight |
| Bar End Type | Fixed Spindle |
| Holding Capacity (kg) | 340.19 |
| Holding Capacity (N) | 3336.17 |
| Holding Capacity (Lb.) | 750.00 |
| Length Distance Between Mount Holes (Inch) | 1.25 |
| Width Distance Between Mount Holes (Inch) | 1-1/4 |
| Height Under Bar (Decimal Inch) | 2.6500 |
| Overall Length (Inch) | 5-1/2 |
| Overall Height (Decimal Inch) | 8.9500 |
| Base Width (Inch) | 2.5300 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.3400 |
| Bar Opening (Degrees) | 105 |
| Handle Movement (Degrees) | 58 |
| Spindle Thread Size | 3/8-16 |
| Spindle Length | 3-1/2 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 3.3500 |
| Finish Coating | Steel |
