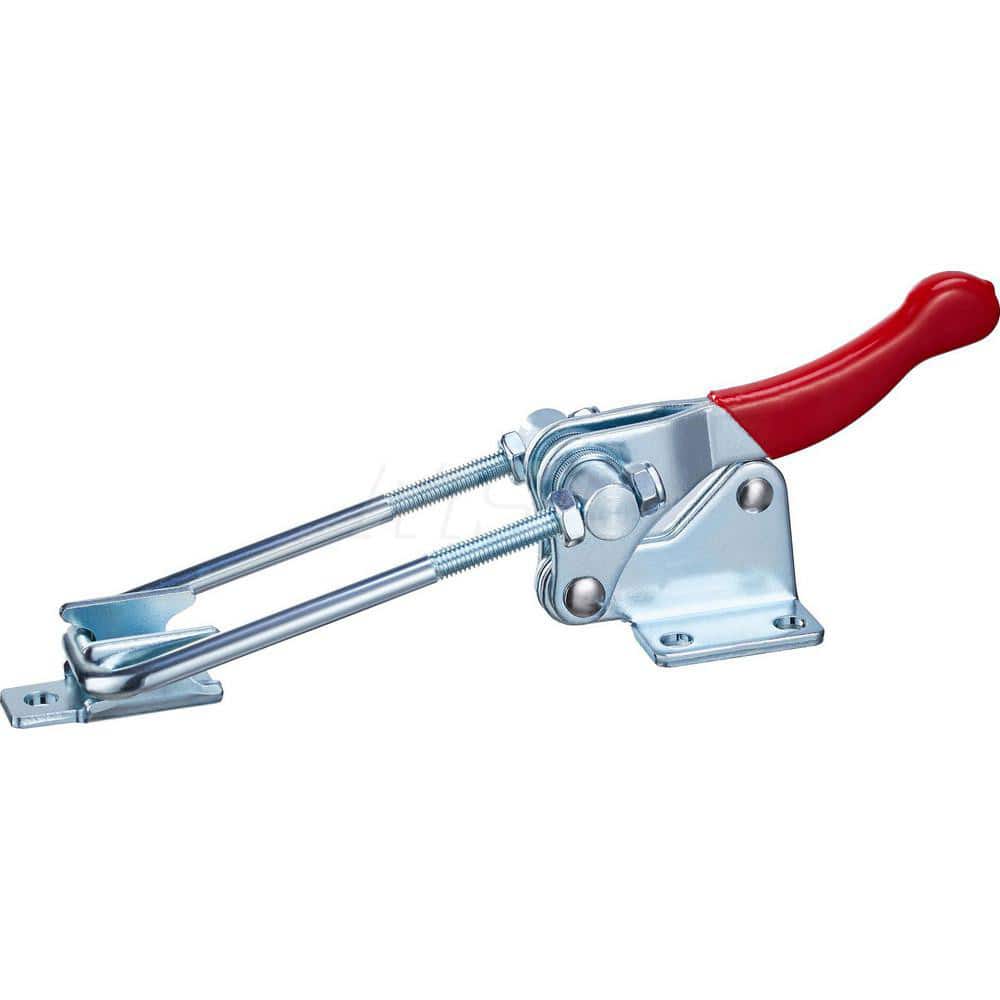

Pull-Action Latch Clamp: Vertical, 2,000 lb, U-Hook, Flanged Base 5.13″ OAL, Straight Handle, Steel
Item #: 14538169
Brand: ShopForce
Model #: 40080
Product Specifications
| Clamping Orientation | Vertical |
| Bar Style | U-Hook |
| Load Capacity (N) | 8896.44 |
| Load Capacity (Lb. - 3 Decimals) | 2000.00 |
| Base Style | Flanged |
| Material | Steel |
| Handle Style | Straight |
| Overall Length (Decimal Inch) | 5.1300 |
| Overall Length (mm) | 130.00 |
| Overall Height (Mm - 5 Decimals) | 150.11 |
| Overall Height (Decimal Inch) | 5.9100 |
| Handle Color | Red |
| Base Length | 1.88 |
| Base Length (mm) | 47.75 |
| Base Width (Inch) | 2.0800 |
| Base Width | 52.83 |
| Mounting Hole Diameter (mm) | 8.64 |
| Mounting Hole Diameter | 0.3400 |
| Width Distance Between Mount Holes (mm) | 36.58 |
| Length Distance Between Mount Holes (Decimal Inch) | 1.2500 |
| Length Distance Between Mount Holes (mm) | 31.75 |
| Width Distance Between Mounting Holes | 1.4400 |
