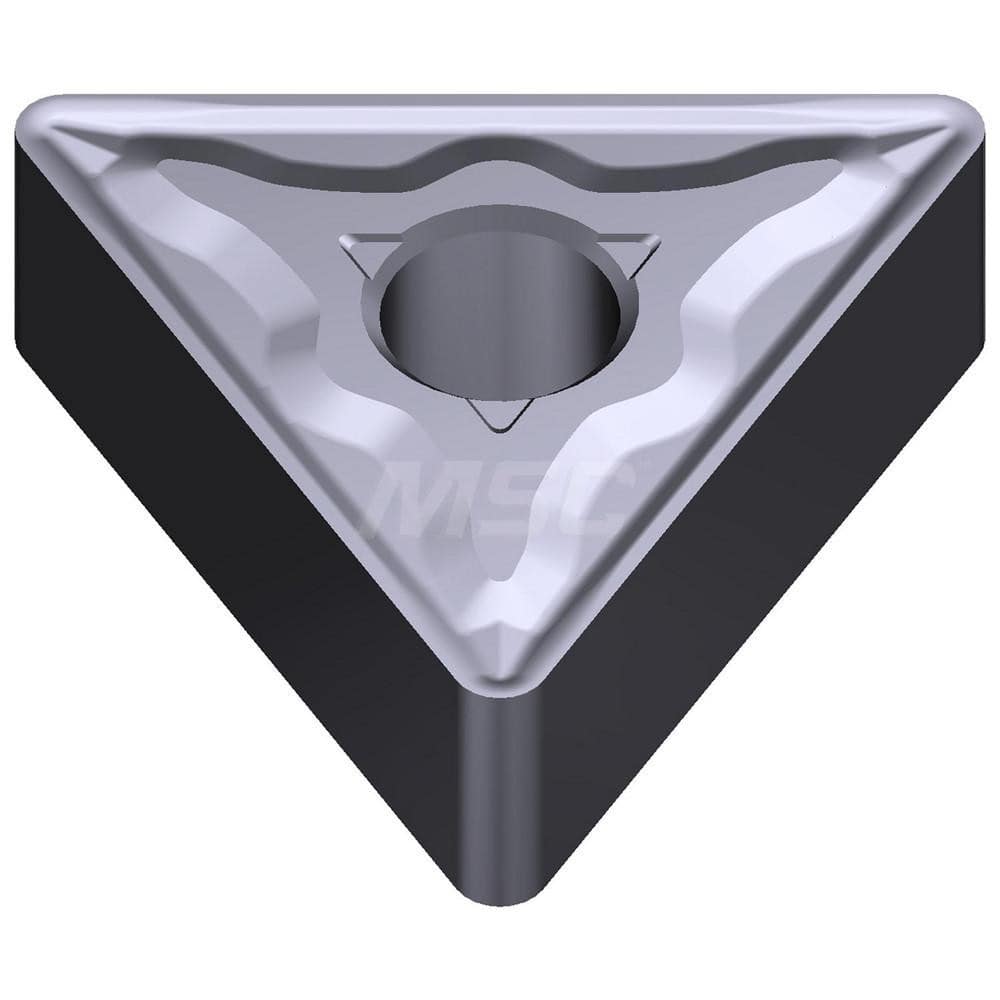

Turning Insert: TNMG666EEM AC5005S, Solid Carbide Absotech Finish, 1.2992″ Long, 3/4″ Inscribed Circle, 0.0945″ Corner Radius, 60.0 ° N/A Series AC5005S
Item #: 14598056
Brand: Sumitomo
Model #: 19W2CRV
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 666 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5005S |
| Hole Diameter (Mm) ( - 0 Decimals) | 7.93 |
| Hole Diameter (Decimal Inch) | 0.3122 |
| Inscribed Circle (Inch) | 3/4 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.3748 |
| Corner Radius (Decimal Inch) | 0.0945 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | AC5005S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 1.2992 |
| Iso Code | TNMG330924N-EM |
| Manufacturers Catalog Number | TNMG666EEM-AC5005S |
| Chip Breaker | EEM |
| Coating/Finish | Absotech |
