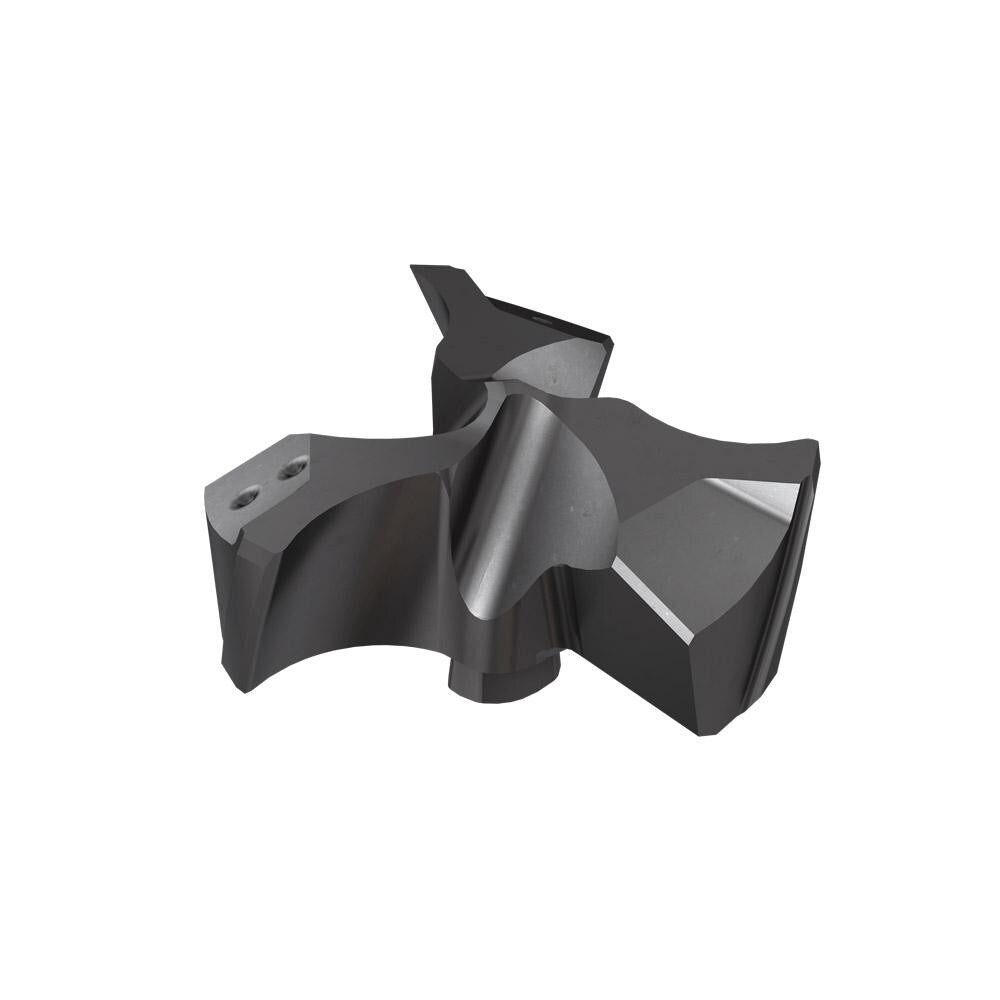

Replaceable Drill Tips: F3P0854-IQ IC908, 0.8543" Dia, 21.70 mm Dia, 132 deg Point, IC908
Item #: 84563394
Brand: Iscar
Model #: 3427125
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.8543 |
| Cutting Diameter (mm) | 21.70 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IC908 |
| Material Grade | H20-H30; P15-P30; M20-M30; S10-S25; K20-K30 |
| Series | F3P |
| Coating Process | PVD |
| Insert Geometry | Flat Bottom |
| Insert Seat Size | 21 |
| Functional Length (Decimal Inch) | 0.2949 |
| Functional Length (mm) | 7.49 |
| Primary Workpiece Material | Hard Material; Super-Alloys & Titanium; Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; S; H; K; M |
| Standards | ISO 13399 |
| Height (Decimal Inch) | 0.363400 |
| Height (mm) | 9.2300 |
| Overall Length/Projection (Decimal Inch) | 0.3634 |
| Drill Point Angle | 132 |
| Insert Holding Method | Self Clamping |
| ISO Number | 72550E1361C6C |
| Coolant Through | No |
| Overall Length/Projection (mm) | 9.23 |
| Style | F3P |
| UNSPSC Code | 23242105 |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Number Of Flutes | 3 |
| Country of Origin | Israel |
