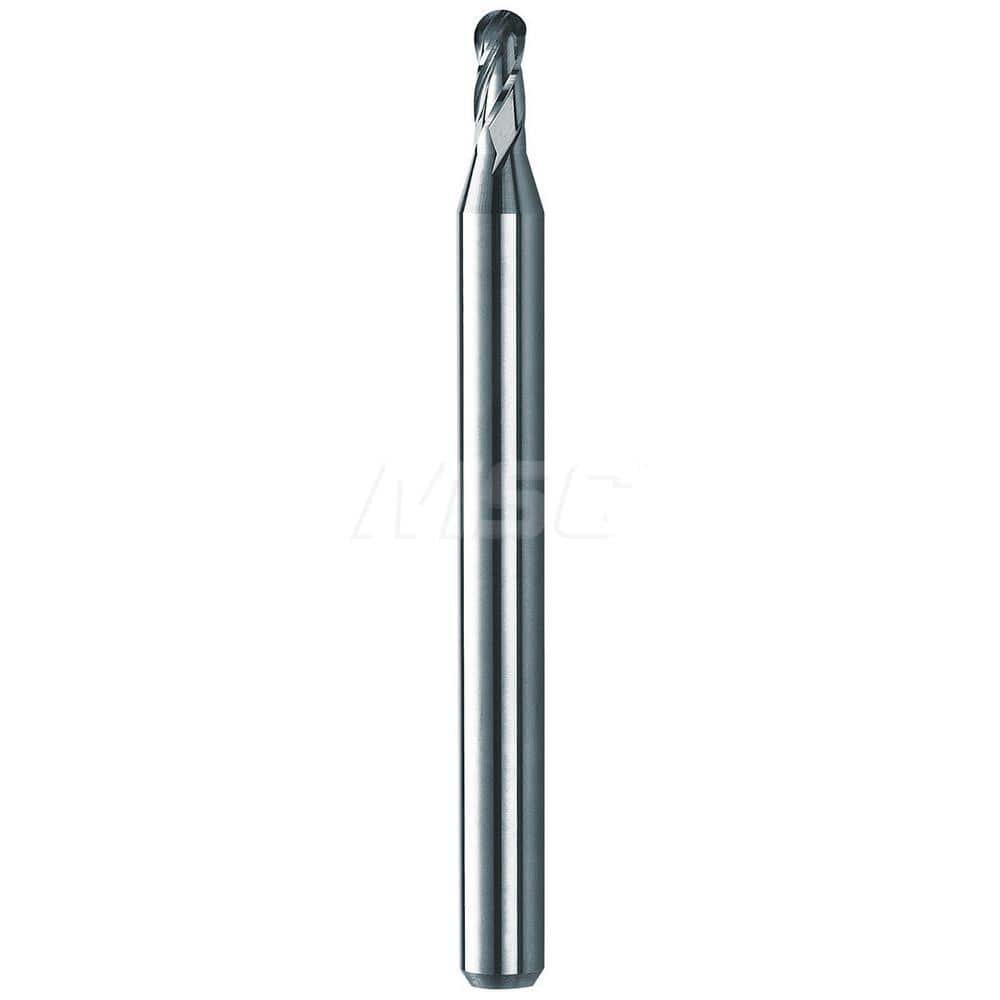

Ball End Mill: 0.0945″ Dia, 0.08″ LOC, 2 Flute, Solid Carbide 38 mm OAL, 3 mm Shank Dia, 30 ° Helix, Uncoated, Single End, Series M2BM
Item #: 14622492
Brand: SGS
Model #: 01909
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0945 |
| Mill Diameter (mm) | 1.40 |
| Length of Cut (mm) | 2.10 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.0500 to 0.1000 |
| Variable Helix | No |
| Length Type | Regular |
| Shank Diameter (mm) | 3.00 |
| Overall Length (mm) | 38.00 |
| Shank Diameter Tolerance | h6 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | M2BM |
| Flute Type | Spiral |
| Product Service Code | 3455 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 2 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0800 |
