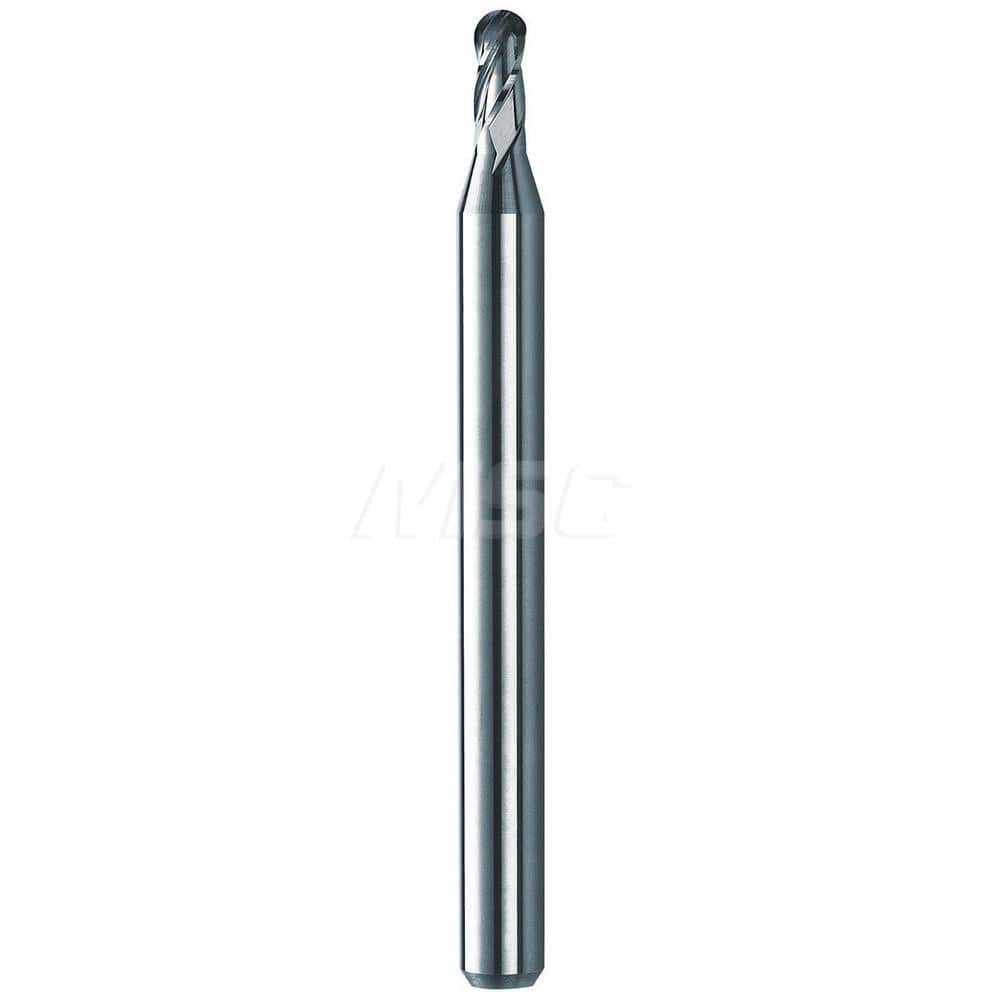

Ball End Mill: 0.1024″ Dia, 0.3″ LOC, 4 Flute, Solid Carbide 38 mm OAL, 3 mm Shank Dia, 30 ° Helix, Uncoated, Single End, Series M4BM
Item #: 14622658
Brand: SGS
Model #: 01995
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1024 |
| Mill Diameter (mm) | 2.60 |
| Length of Cut (mm) | 7.80 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Length Type | Regular |
| Shank Diameter (mm) | 3.00 |
| Overall Length (mm) | 38.00 |
| Shank Diameter Tolerance | h6 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | M4BM |
| Flute Type | Spiral |
| Product Service Code | 3455 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3000 |
