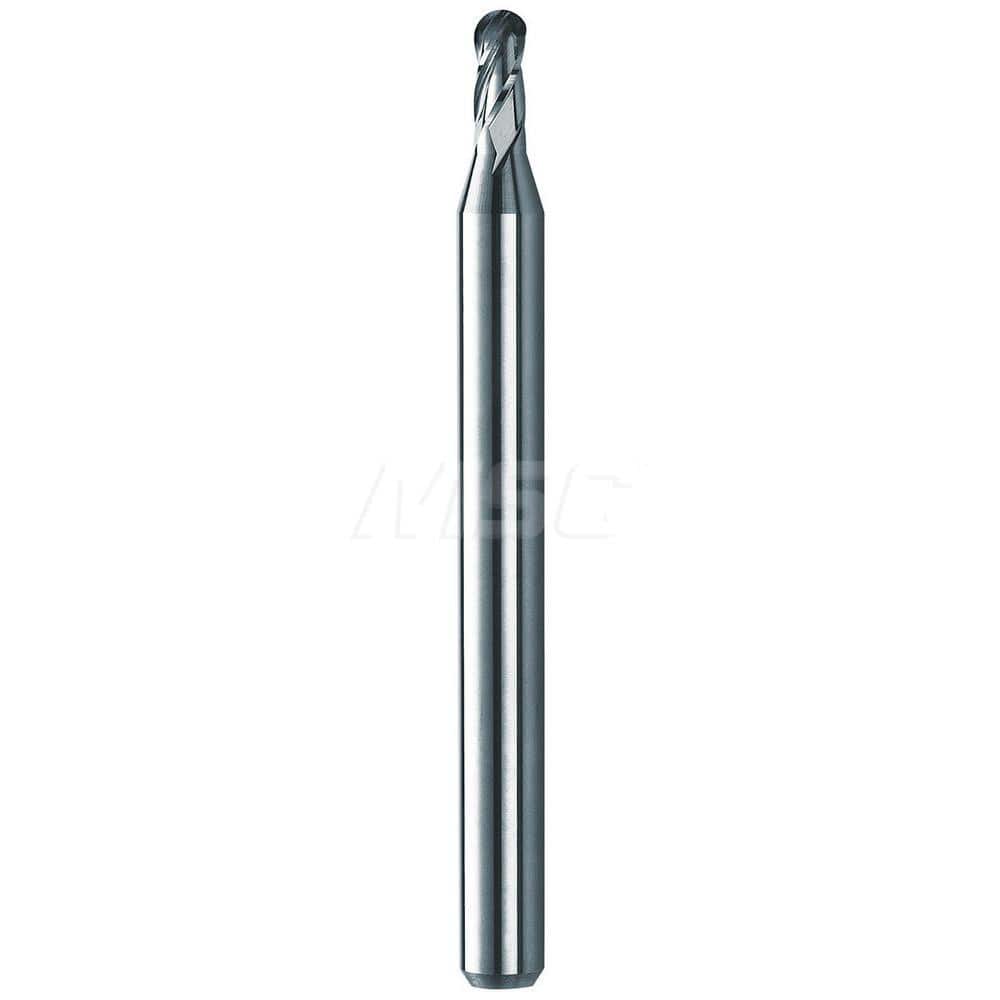

Ball End Mill: 0.0748″ Dia, 0.11″ LOC, 4 Flute, Solid Carbide 50 mm OAL, 4 mm Shank Dia, 30 ° Helix, AlTiN Coated, Single End, Series M4BM
Item #: 14628200
Brand: SGS
Model #: 03000
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0748 |
| Mill Diameter (mm) | 1.90 |
| Length of Cut (mm) | 2.85 |
| End Mill Material | Solid Carbide |
| Chipbreaker | No |
| End Type | Ball |
| Extended Reach | No |
| Helix Angle | 30 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.1000 to 0.2000 |
| Variable Helix | No |
| Length Type | Regular |
| Shank Diameter (mm) | 4.00 |
| Overall Length (mm) | 50.00 |
| Shank Diameter Tolerance | h6 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | M4BM |
| Flute Type | Spiral |
| Product Service Code | 3455 |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.1100 |
