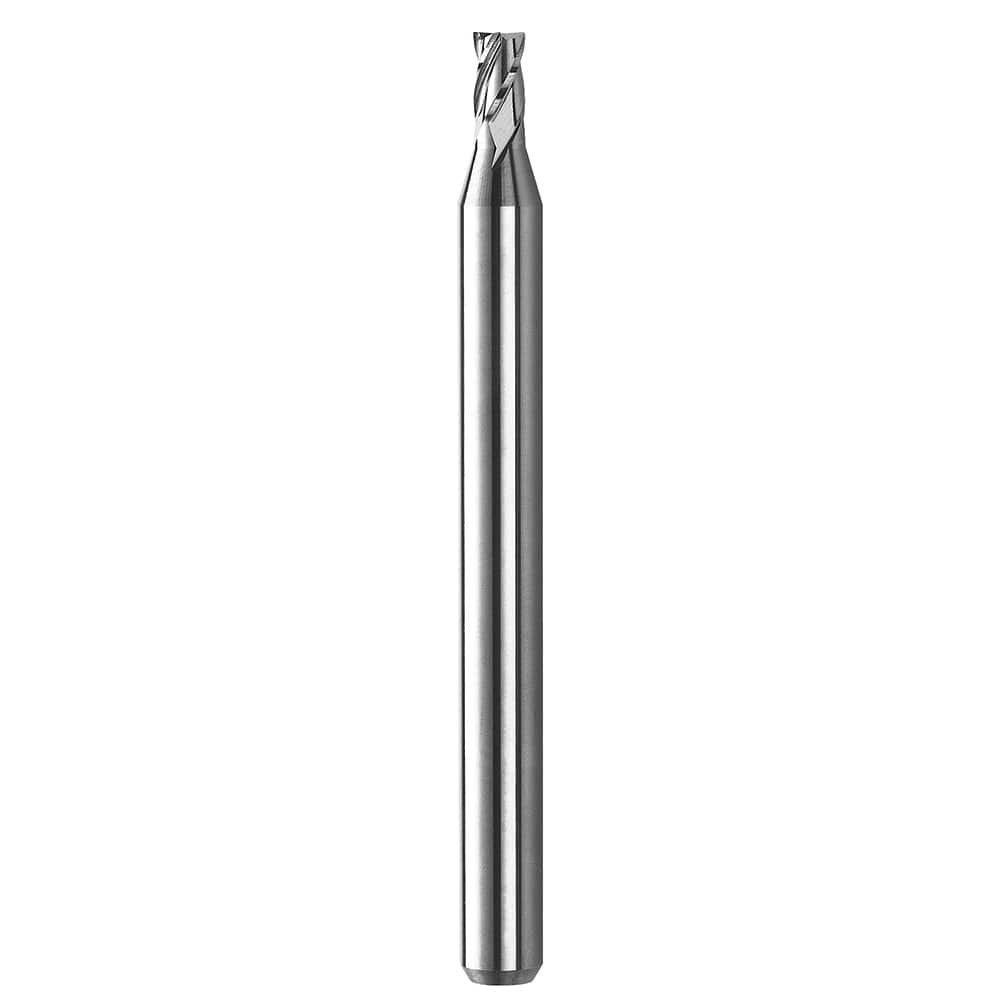

Square End Mill: 0.034'' Dia, 0.051'' LOC, 1/8'' Shank Dia, 1-1/2'' OAL, 2 Flutes, Solid Carbide Single End, Spiral Flute, Centercutting, RH Cut, RH Flute
Item #: 14637342
Brand: SGS
Model #: 00330
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0340 |
| Number Of Flutes | 2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1/8 |
| Finish/Coating | Bright/Uncoated |
| Overall Length (Inch) | 1-1/2 |
| Helix Angle | 30 |
| Variable Helix | No |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 0.0000 - 0.1000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.0510 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 1.5000 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.000 to -0.001 in |
| Overall Length Tolerance | +0.062/-0.062 in |
| PSC Code | 3455 |
