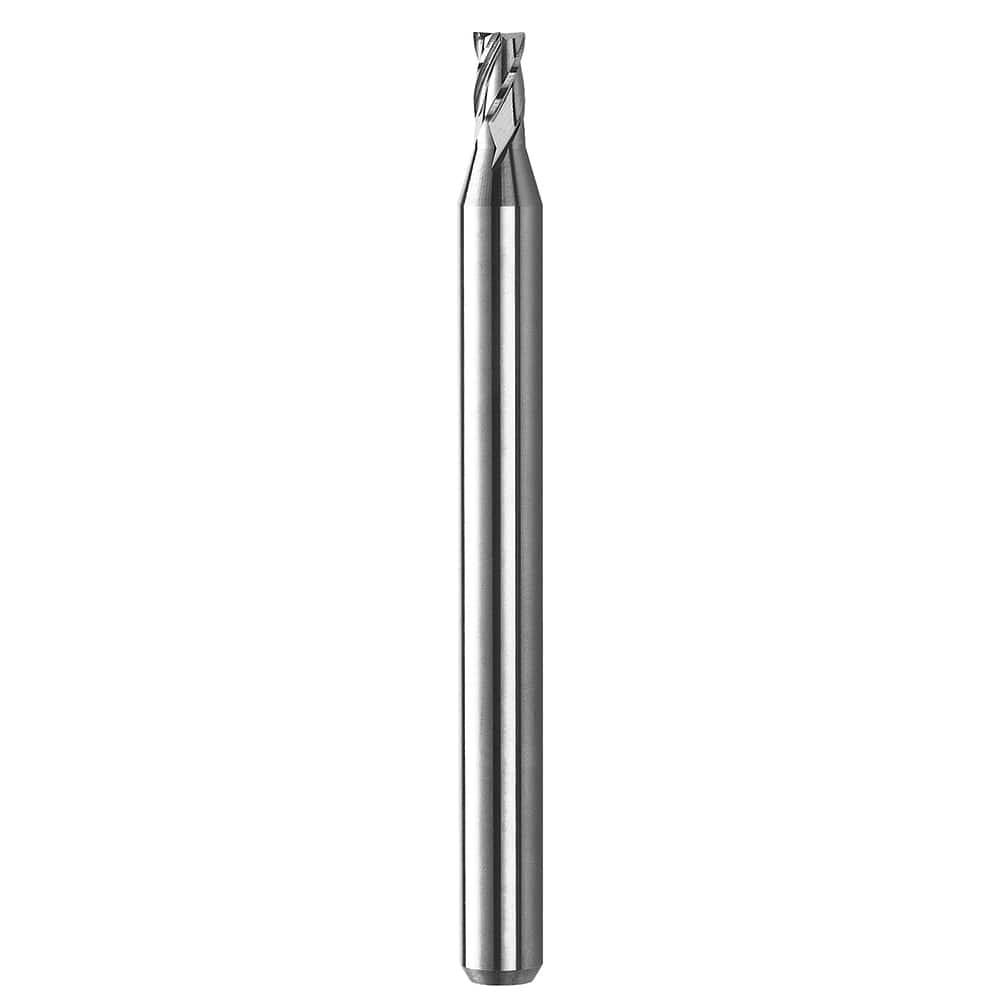

Square End Mill: 0.07'' Dia, 0.1181'' LOC, 4 Flutes, Solid Carbide Single End, Spiral Flute, Centercutting, RH Cut, RH Flute
Item #: 14639082
Brand: SGS
Model #: 05087
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0700 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 3.00 |
| Helix Angle | 30 |
| Variable Helix | No |
| Extended Reach | No |
| Overall Length (mm) | 38.00 |
| Length Of Cut Range (Decimal Inch) | 0.1000 - 0.2000 |
| Shank Type | Straight-Cylindrical |
| Length of Cut (Decimal Inch) | 0.1181 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Flute Direction | Right Hand |
| Flute Type | Spiral |
| Helix Style | Medium |
| Shank Diameter Tolerance | h6 |
| Length Type | Regular |
| Mill Diameter Tolerance | +0.000 to -0.001 in |
| Overall Length Tolerance | +0.062/-0.062 in |
