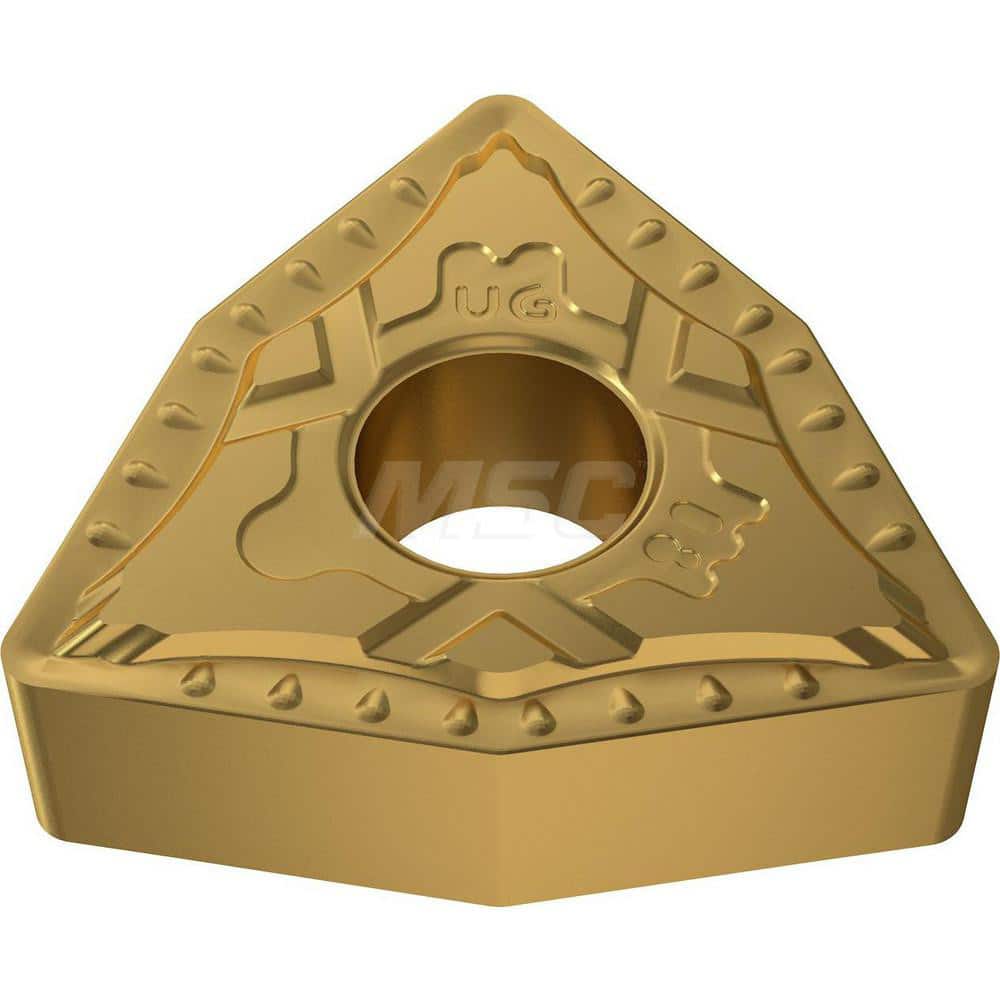

Turning Insert: WNMG080408-UG YG801, Solid Carbide TiAlN Finish, 0.3070″ Long, 1/2″ Inscribed Circle, N/A Series WNMG
Item #: 14749931
Brand: YG-1
Model #: 22000056
Product Specifications
| Insert Style | WNMG |
| Insert Shape Code | W |
| Insert Size Code | 080408 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | YG801 |
| Inscribed Circle (Inch) | 1/2 |
| Width (Inch) | 1/2 |
| Insert Thickness (Inch) | 3/16 |
| Corner Radius (Inch) | 1/32 |
| Series | WNMG |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Insert Length (Decimal Inch) | 0.3070 |
| Chip Breaker | G |
| Coating/Finish | TiAlN |
