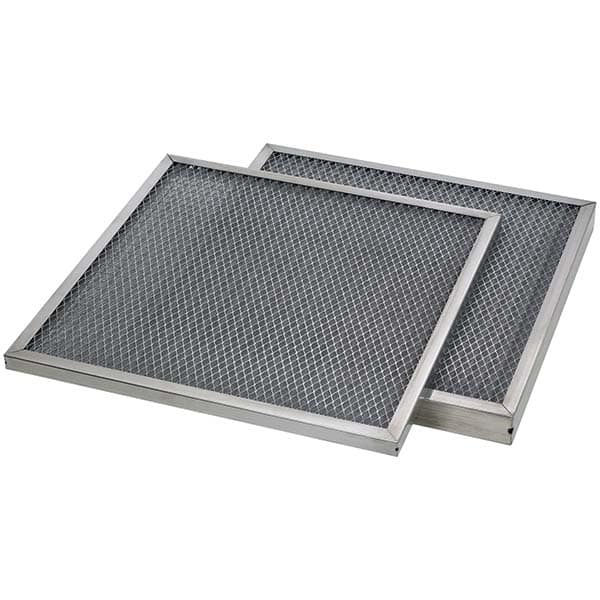

PRO-SOURCE - Pleated & Panel Air Filters; Filter Type: Aluminum Mesh ; Nominal Height (Inch): 15 ; Nominal Width (Inch): 20 ; Nominal Depth (Inch): 2 ; Media Material: Corrugated Aluminum ; Integrated Frame: Yes
Item #: 14944169
Brand: PRO-SOURCE
Model #: PRO17915202
Product Specifications
Pleated & Panel Air Filters; Filter Type: Aluminum Mesh ; Nominal Height (Inch): 15 ; Nominal Width (Inch): 20 ; Nominal Depth (Inch): 2 ; Media Material: Corrugated Aluminum ; Integrated Frame: Yes
| Filter Type | Aluminum Mesh |
| Nominal Height (Inch) | 15 |
| Nominal Width (Inch) | 20 |
| Nominal Depth (Inch) | 2 |
| Media Material | Corrugated Aluminum |
| Integrated Frame | Yes |
| Actual Height (Decimal Inch) | 14.500 |
| Actual Width (Decimal Inch) | 19.500 |
| Actual Depth (Inch) | 1.75 |
| Maximum Air Flow (FPM) | 500 |
| Initial Resistance at FPM (Inches w.g.) | 0.045 (at 300 FPM) |
| Maximum Temperature (F) | 275.000 |
| Frame Material | Aluminum |
| Standards Met | UL 900 |
