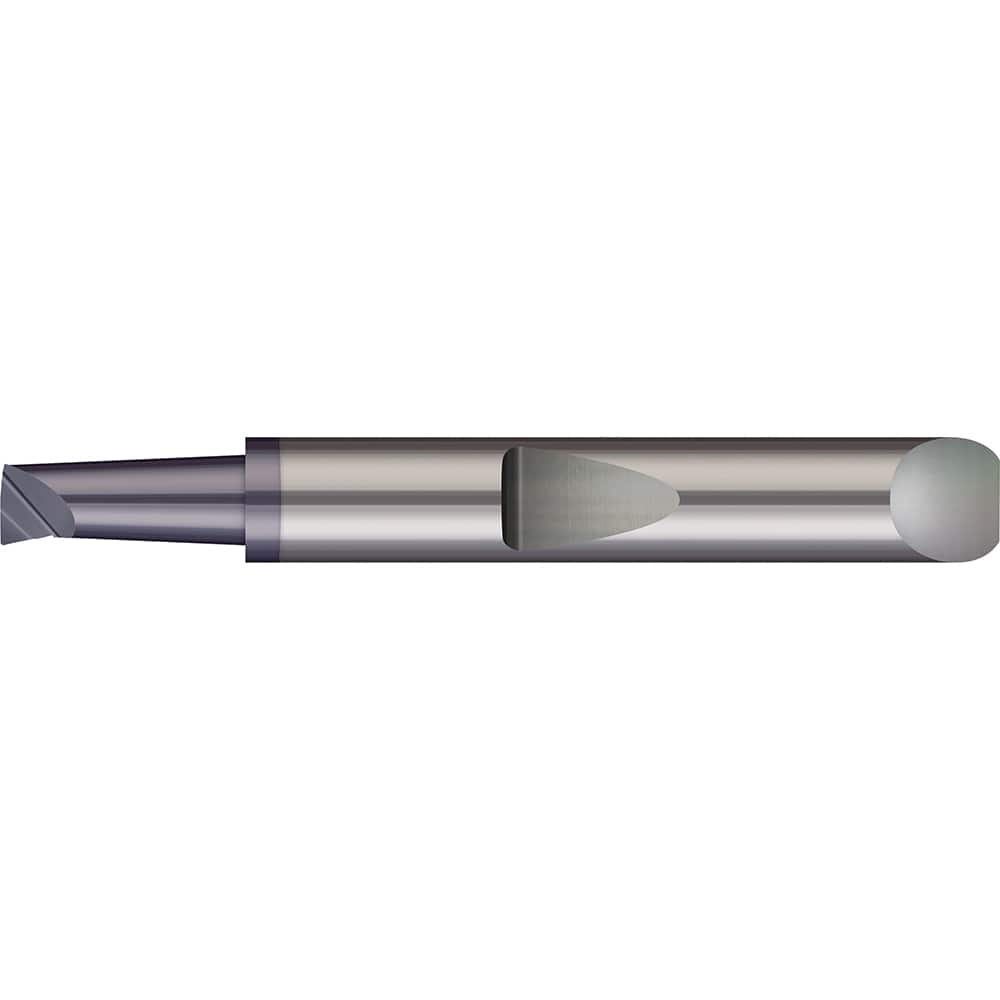

Boring Bar: 0.15″ Min Bore, 3/4″ Max Depth, Right Hand Cut, Solid Carbide 1/4″ Shank Dia, 2″ OAL, 0.003″ Corner Radius
Item #: 15108590
Brand: Micro 100
Model #: QBM-150750X
Product Specifications
| Boring Bar Type | Boring |
| Cutting Direction | Right Hand |
| Minimum Bore Diameter (Decimal Inch) | 0.1500 |
| Material | Solid Carbide |
| Maximum Bore Depth (Decimal Inch) | 0.7500 |
| Shank Diameter (Decimal Inch) | 1/4 |
| Overall Length (Inch) | 2 |
| Finish Coating | AlTiN |
| Corner Radius (Decimal Inch) | 0.0030 |
| Corner Radius | 0.003 in |
| Maximum Bore Depth (Inch) | 3/4 |
| Offset (Decimal Inch) | 0.0710 |
| Overall Length (Decimal Inch) | 2.0000 |
