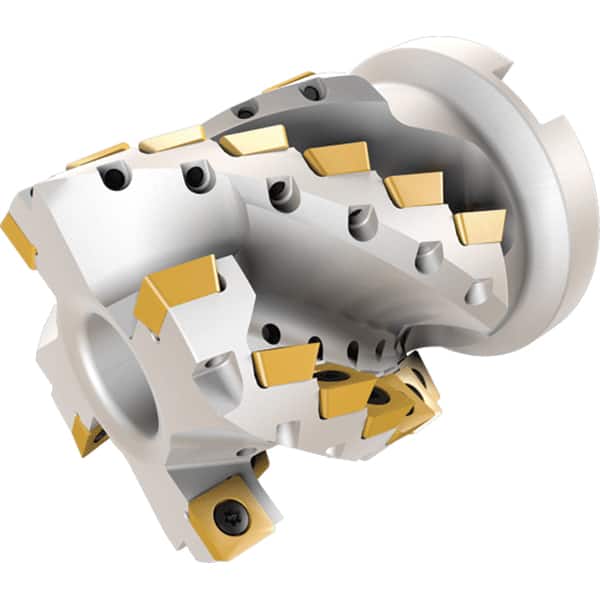

Indexable Square-Shoulder End Mill: SDK D063-56-04-27-10-C, 2.4800'' Cut Dia, Uses 28, Through Coolant, 80.00 mm OAL
Item #: 15110349
Brand: Iscar
Model #: 3110894
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 2.4800 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 56.00 |
| Cutter Style | SDK-10-C/HP |
| Insert Holding Method | Screw |
| Overall Length (mm) | 80.00 |
| Overall Length (Decimal Inch) | 3.1490 |
| Tool Material | Steel |
| Series | SDK |
| Tool Application | Milling |
| Standards | ISO 9001:2008; AS 9100; OSHAS18001:2007; ISO 50001; ISO 14001:2004 |
| Number Of Flutes | 4 |
| Number Of Cutter Inserts | 28 |
| Coolant Through | Yes |
