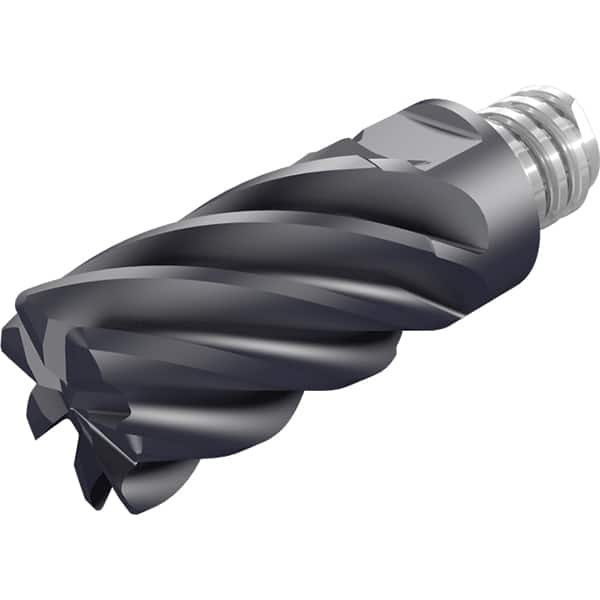

Iscar - MM EC312H47R015-7T05 Carbide End Mill Tip Insert
Item #: 15111800
Brand: Iscar
Model #: 3336740
Product Specifications
| Series | MM |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 7.90 |
| Cutting Diameter (Decimal Inch) | 0.3120 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 11.90 |
| Depth of Cut (Decimal Inch) | 0.4690 |
| Number of Flutes | 7 |
| Coating | TiAIN |
| Corner Radius (Inch) | 0.015 |
| Coating Process | PVD |
| Overall Length (Decimal Inch) | 0.70900 |
| Finish/Coating | TiAIN |
| Corner Radius (mm) | 0.38 |
